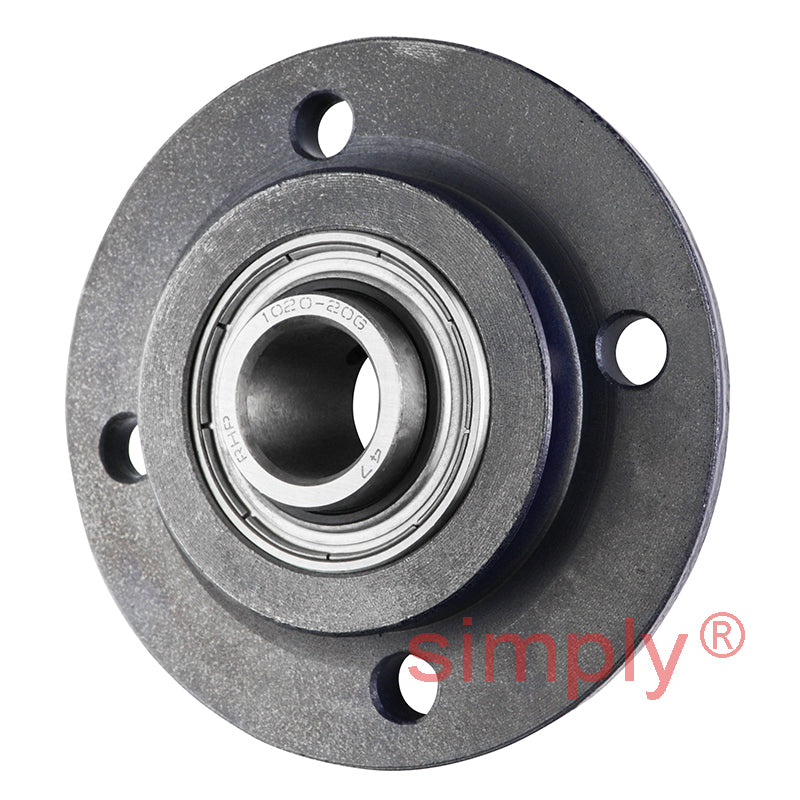

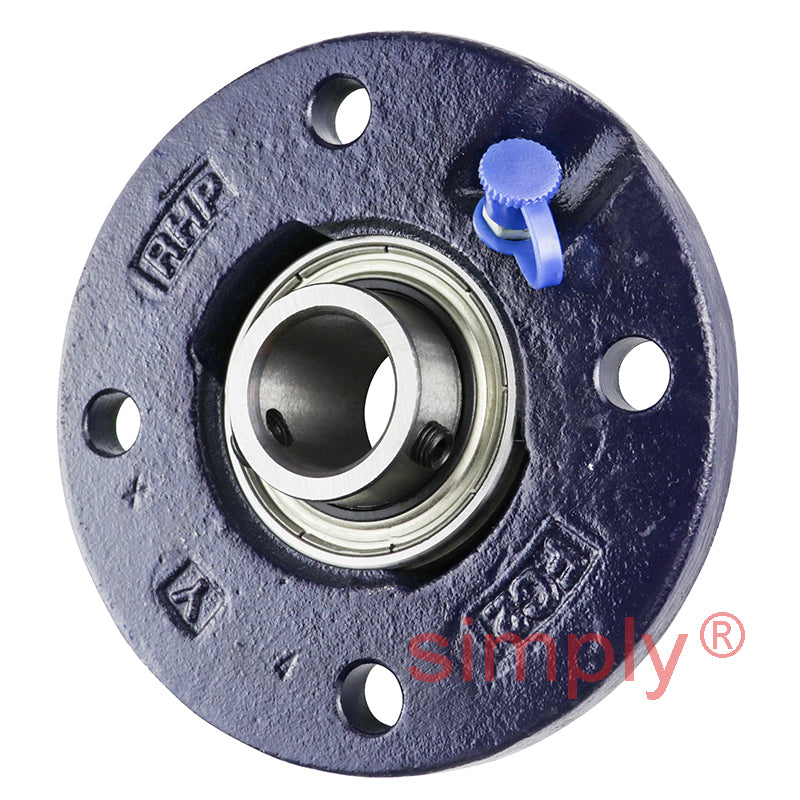

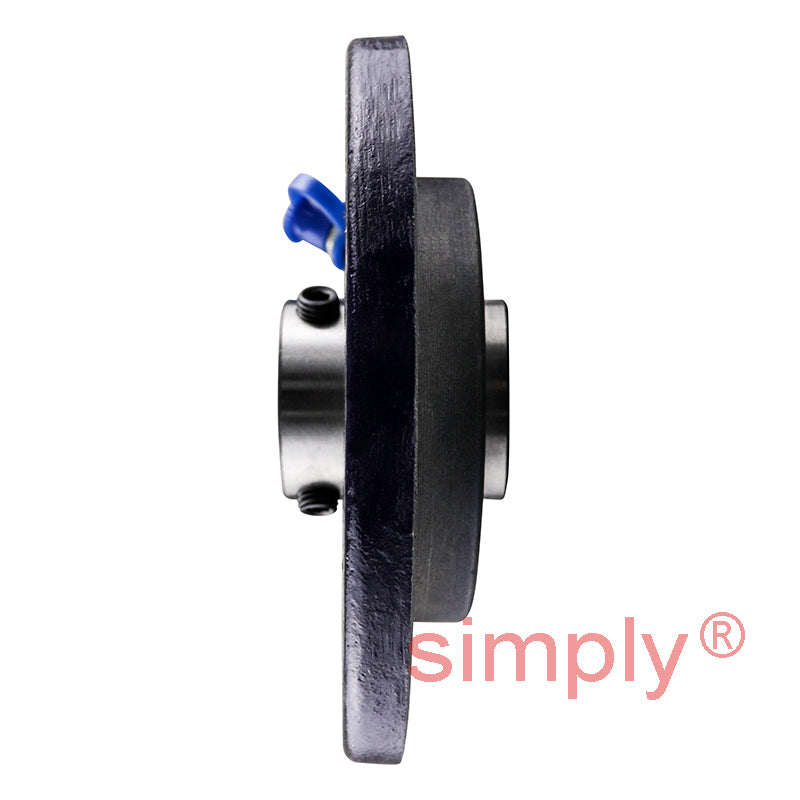

RHP FC20-RHP Four Bolt Round Cast Iron Flanged Bearing Unit and 20mm Insert
RHP FC20-RHP Four Bolt Round Cast Iron Flanged Bearing Unit and 20mm Insert
Regular price
€44,39
ex VAT
Regular price
Sale price
€44,39
ex VAT
In stock
Price Break
10+
€33,73
20+
€31,83
30+
€31,45
40+
€31,07
50+
€30,70
75+
€30,32
100+
€28,42
200+
€28,04
250+
€27,66
500+
€27,28
1000+
€26,53
Quantity
Couldn't load pickup availability
Share this product
Description
Description
|
RHP FC Series 4 Bolt Round Cast Iron Housing Units: Four bolt round cast iron bearing unit supplied with a sealed full width bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 20mm
- Style:
- FC
- Pitch Circle Diameter:
- 78mm
Technical
Technical
| Bore | 20mm |
|---|---|
| L | 100mm |
| H | 62mm |
| J | 78mm |
| G | 8mm |
| A | 17mm |
| A1 | 16.29mm |
| A5 | 8mm |
| B | 30.96mm |
| s | 12.75mm |
| d1 | 28.5mm |
| Dynamic load | 12800 N |
| Static load | 6650 N |
| Rec max speed | 6700 rpm |
| Weight | 0.7 kg |
| Insert | <a href="advanced_search_result.php?keywords=1020-20G+insonly">1020-20G Click Here</a> |
| Casting group | 2 |
| Grease nipple thread | 1/4 UNF, 1/4 inch x 28 TPI |
