SKU: FC2-RHP

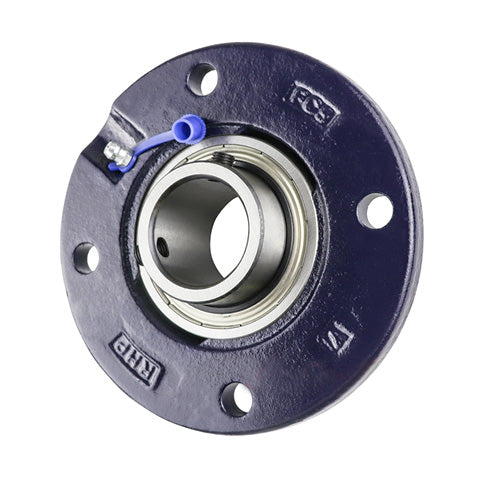

RHP FC2-RHP Four Bolt Round Cast Iron Flanged Bearing Unit and 2 inch Insert
RHP FC2-RHP Four Bolt Round Cast Iron Flanged Bearing Unit and 2 inch Insert
Regular price
€139,91
ex VAT
Regular price
Sale price
€139,91
ex VAT
In stock
Price Break
10+
€106,33
20+
€100,36
30+
€99,16
40+
€97,97
50+
€96,77
75+
€95,58
100+
€89,61
200+
€88,41
250+
€87,22
500+
€86,02
1000+
€83,63
Quantity
Couldn't load pickup availability
Share this product
Description
Description
|
RHP FC Series 4 Bolt Round Cast Iron Housing Units: Four bolt round cast iron bearing unit supplied with a sealed full width bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 50.8mm = 2 inch
- Style:
- FC
- Pitch Circle Diameter:
- 150.02mm = 5.906 inch

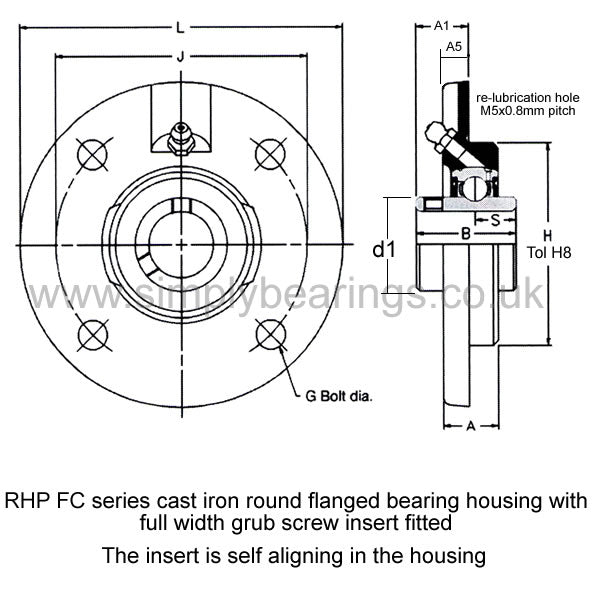

Technical
Technical
| Bore | 2 inch |
|---|---|
| L | 7.283 inch |
| H | 4.921 inch |
| J | 5.906 inch |
| G | 0.625 inch |
| A | 1.083 inch |
| A1 | 1.311 inch |
| A5 | 0.591 inch |
| B | 2.187 inch |
| s | 0.877 inch |
| d1 | 2.709 inch |
| Dynamic load | 43500 N |
| Static load | 29200 N |
| Rec max speed | 3100 rpm |
| Weight | 4 kg |
| Insert | <a href="advanced_search_result.php?keywords=1055-2G+insonly">1055-2G Click Here</a> |
| Casting group | 9 |
| Grease nipple thread | 1/4 UNF, 1/4 inch x 28 TPI |
