SKU: FC1.7/16EC-RHP

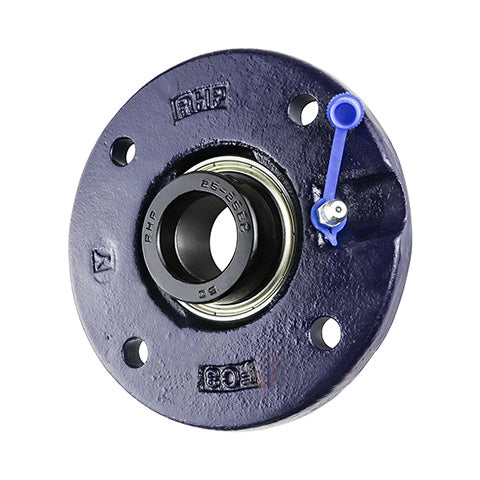

RHP FC1.7/16EC-RHP Four Bolt Round Cast Iron Flanged Bearing Unit and 1-7/16 inch Insert
RHP FC1.7/16EC-RHP Four Bolt Round Cast Iron Flanged Bearing Unit and 1-7/16 inch Insert
Regular price
€80,19
ex VAT
Regular price
Sale price
€80,19
ex VAT
In stock
Price Break
10+
€60,93
20+
€57,51
30+
€56,83
40+
€56,14
50+
€55,46
75+
€54,77
100+
€51,35
200+
€50,66
250+
€49,98
500+
€49,29
1000+
€47,93
Quantity
Couldn't load pickup availability
Share this product
Description
Description
|
RHP FC EC Series 4 Bolt Round Cast Iron Housing Units: Four bolt round cast iron bearing unit supplied with a sealed flat back bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has an eccentric collar and grub screw to allow tightening against the shaft after installation. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 36.51mm = 1.437 (1-7/16) inch
- Style:
- FC
- Pitch Circle Diameter:
- 110.01mm = 4.331 inch
Technical
Technical
| Bore | 1-7/16 inch |
|---|---|
| L | 5.315 inch |
| H | 3.543 inch |
| J | 4.331 inch |
| G | 0.375 inch |
| A | 0.807 inch |
| A2 | 1.115 inch |
| A5 | 0.394 inch |
| B2 | 1.531 inch |
| s2 | 0.744 inch |
| d2 | 2.188 inch |
| Dynamic load | 25700 N |
| Static load | 15300 N |
| Rec max speed | 4500 rpm |
| Weight | 1.5 kg |
| Insert | <a href="advanced_search_result.php?keywords=1235-1-7/16ECG+insonly">1235-1-7/16ECG Click Here</a> |
| Casting group | 5 |
| Grease nipple thread | 1/4 UNF, 1/4 inch x 28 TPI |
