SKU: F8-16G-EU
F8-16G Budget Single Thrust Ball Bearing with Grooved Washers 8x16x5mm
- Regular price
- €3,70 ex VAT
- Sale price
- €3,70
- Regular price
-
In stock
Quantity Price Breaks
10+
€3,29
19+
€3,11
29+
€3,07
39+
€3,03
49+
€3,00
74+
€2,96
99+
€2,78
199+
€2,74
249+
€2,70
499+
€2,66
999+
€2,59
SKU:
F8-16G-EU
F8-16G Budget Single Thrust Ball Bearing with Grooved Washers 8x16x5mm
- Regular price
- €3,70 ex VAT
- Sale price
- €3,70
- Regular price
-
Description

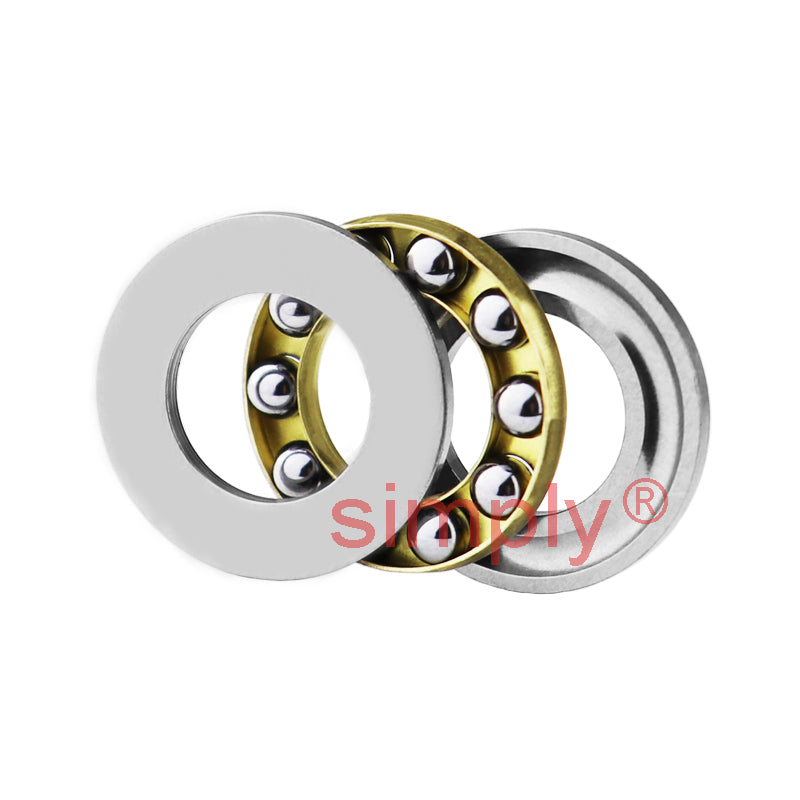

Thrust Ball Thrust Bearings: These bearings consist of three parts, a shaft and housing washer that have angular grooves in them and a caged ball bearing assembly that is sandwiched in between them. Assembly and mounting is a simple operation as the parts are separate. They support axial loads in one direction. Clearance is provided in the bore of one of the raceways to allow for alignment.
Benefits: Axial loading, ease of mounting and assembly

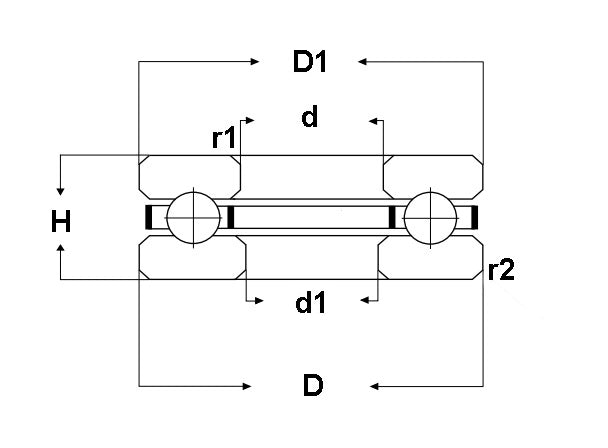

Technical
| d | = | 8mm (+0/-0.05mm) |
| D | = | 16mm (+0.005/-0.020mm) |
| H | = | 5mm (+0/-0.075mm) |
| d1 | = | 8.2mm (+0/-0.011mm) |
| D1 | = | 15.8mm (+0/-0.008mm) |
| r1r2 min | = | 0.3mm |
| Dynamic load C | = | 3.844 kN |
| Static load Co | = | 4.894 kN |
| Limiting speed | = | 16000 rpm |
| Weight | = | 0.004 kg |
| Material | = | Balls & |
| Washers, Chrome Steel, Brass or 304 Stainless Steel Cage | = | N/A |
