SKU: EFN08-20-502-DURB

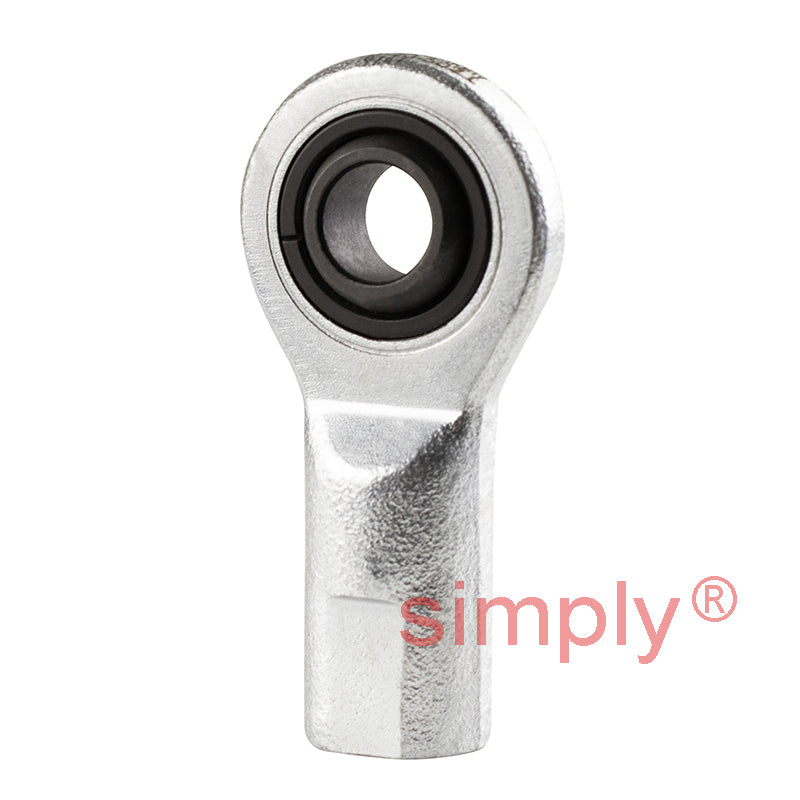

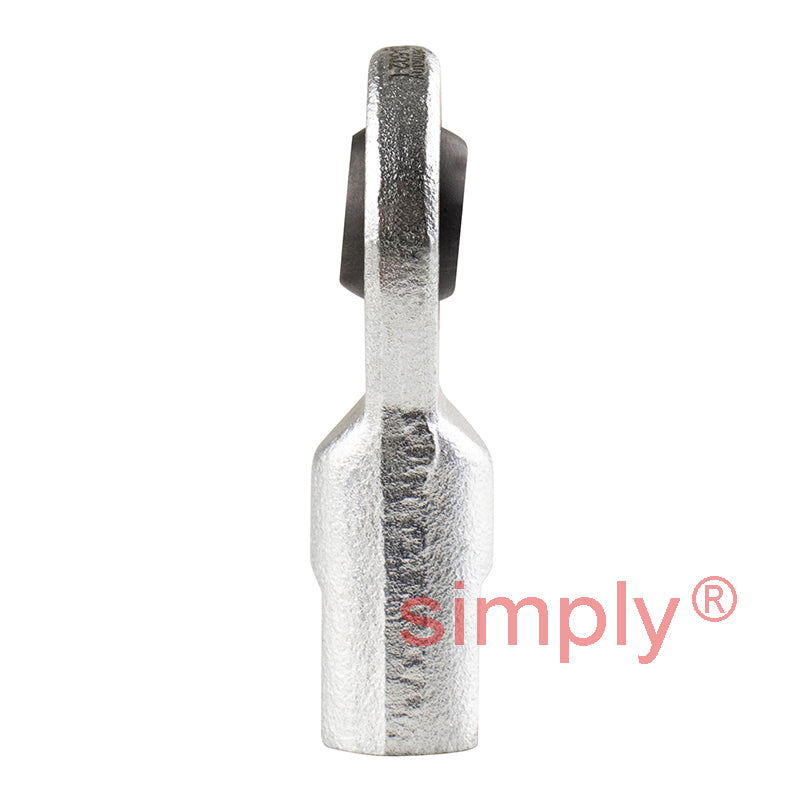

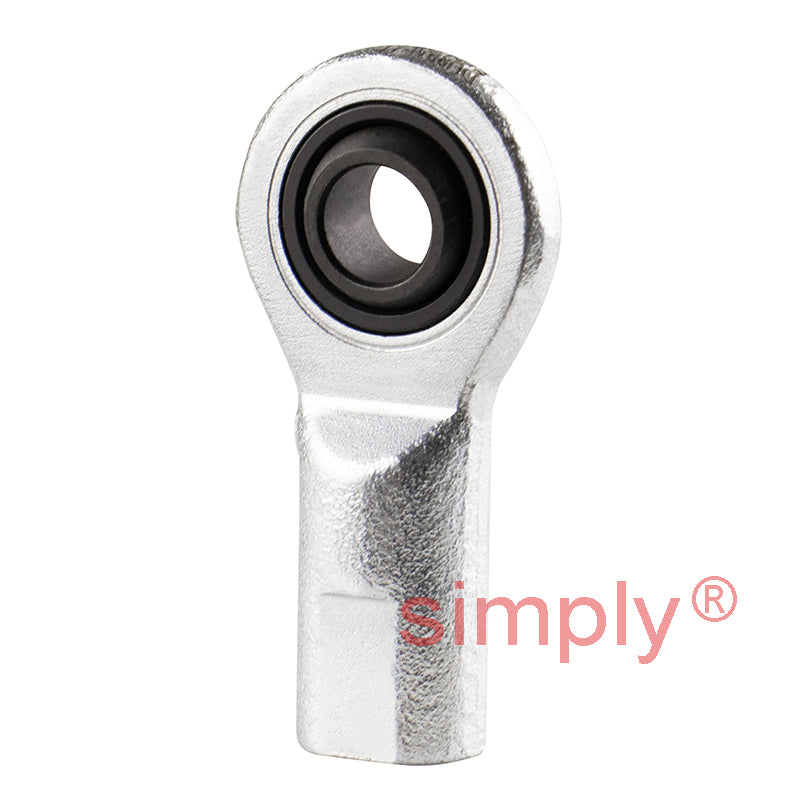

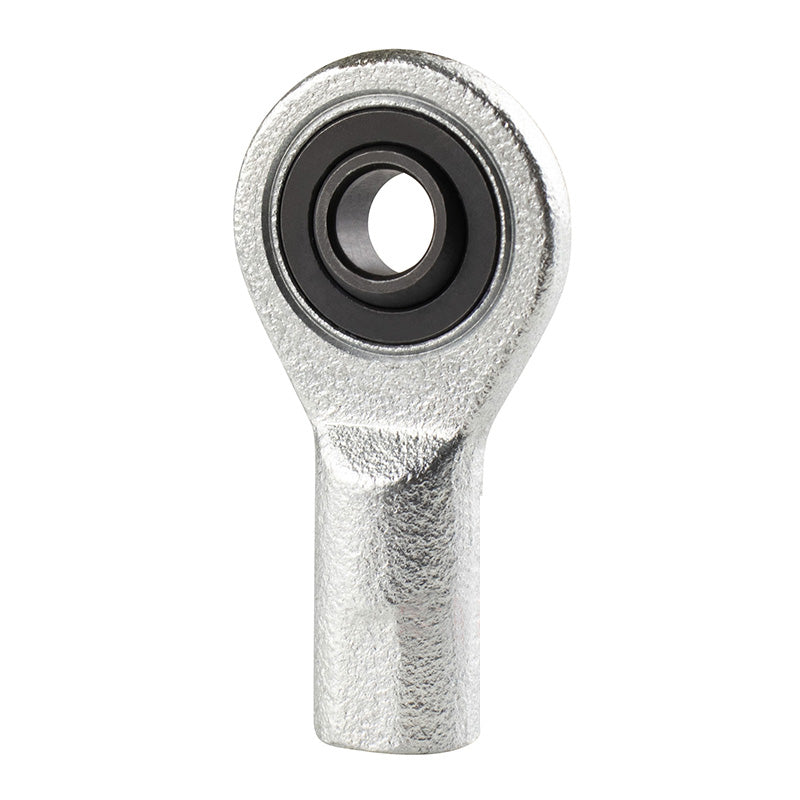

Durbal EFN08-20-502 Maintenance Required Left Hand Metric Steel Female Rod End M8 Thread
- Regular price
- €25,62 ex VAT
- Sale price
- €25,62
- Regular price
-
In stock
Quantity Price Breaks
10
€22,80
19
€21,52
29
€21,26
39
€21,01
49
€20,75
74
€20,50
99
€19,22
199
€18,96
249
€18,70
499
€18,45
999
€17,93
SKU:
EFN08-20-502-DURB
Durbal EFN08-20-502 Maintenance Required Left Hand Metric Steel Female Rod End M8 Thread
- Regular price
- €25,62 ex VAT
- Sale price
- €25,62
- Regular price
-
Description
DESC_EFNR
Note: In this particular rod end series, any size under 15mm will not have a grease nipple and will need greasing manually
Note: In this particular rod end series, any size under 15mm will not have a grease nipple and will need greasing manually
Technical
| Thread Direction | = | -502 (Left) |
| d | = | 8mm |
| G (Thread) | = | M8mm |
| B | = | 8mm |
| C1 | = | 5mm |
| h1 | = | 36mm |
| d1 | = | 10mm |
| d2 | = | 23mm |
| d3 | = | 13mm |
| dk | = | 13mm |
| l3 | = | 16mm |
| l4 | = | 47.5mm |
| l5 | = | 10.5mm |
| l7 | = | 12mm |
| W | = | 11mm |
| tilt angle & | = | alpha |
| = | 15 deg | |
| weight | = | 0.039kg |
| basic load rating dyn C | = | 4.2 kN |
| basic load rating stat Co | = | 13 kN |
| radial clearance CN | = | 32-68 & |
| micro | = | m |
