SKU: EALM-17.F

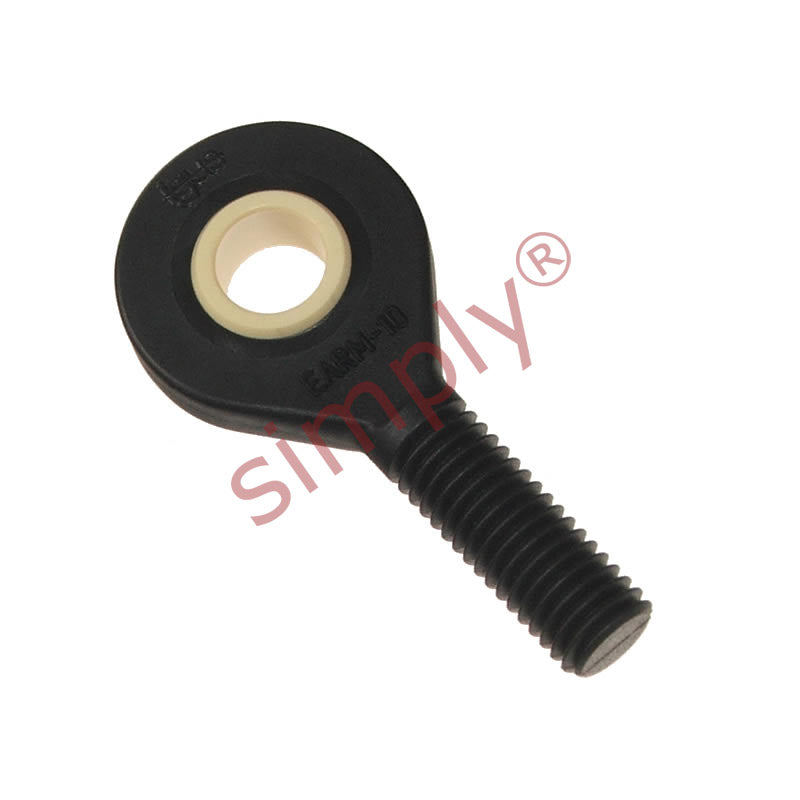

igubal EALM17F Left Hand Male Plastic Rod End 17mm Bore M16x1.5 Thread - Allow 2-3 Days
- Regular price
- €22,46 ex VAT
- Sale price
- €22,46
- Regular price
-
Not in stock
Quantity Price Breaks
4
€19,99
9
€18,87
19
€18,64
29
€18,42
39
€18,19
49
€17,97
59
€16,85
69
€16,62
79
€16,40
89
€16,17
99
€15,72
SKU:
EALM-17.F
igubal EALM17F Left Hand Male Plastic Rod End 17mm Bore M16x1.5 Thread - Allow 2-3 Days
- Regular price
- €22,46 ex VAT
- Sale price
- €22,46
- Regular price
-
Description
IGUS igubal® EALM series slim body left hand male thread rod end bearings: These maintenance free plastic rod ends are a dry operation solution with a high stiffening and very high fatigue strength in varying loads. They compensate for misalignment errors and edge loads and are insensitive to dirt, dust and lint and have high dampening qualities. They are resistant to corrosion and chemicals.
Operating Temperature Range: -30 Deg C to + 80 Deg C long term - short term up to +120 Deg C
Materials: Ball material iglidur® W300, Housing: igumid G
Uses: They are suitable for rotary, oscillating and linear movements and are light weight.
Tolerances: They are manufactured in accordance to DIN ISO 12240
Benefits: Corrosion and chemical resistant, lightweight, stiff, dry operation, maintenance free
Operating Temperature Range: -30 Deg C to + 80 Deg C long term - short term up to +120 Deg C
Materials: Ball material iglidur® W300, Housing: igumid G
Uses: They are suitable for rotary, oscillating and linear movements and are light weight.
Tolerances: They are manufactured in accordance to DIN ISO 12240
Benefits: Corrosion and chemical resistant, lightweight, stiff, dry operation, maintenance free
Technical
| d1 | = | 17mm |
| d2 | = | 46mm |
| d3 | = | M16x1.5 |
| C1 | = | 11mm |
| B | = | 14mm |
| h | = | 69mm |
| l1 | = | 37mm |
| l2 | = | 92mm |
| Max pivot angle | = | 18& |
| deg | = | |
| Max static tensile strength (short term) | = | 3600 N |
| Max static tensile strength (long term) | = | 1800 N |
| Max radial load (short term) | = | 900 N |
| Max radial load (long term) | = | 450 N |
| Min thread depth | = | 26mm |
| Max torque outside thread | = | 21 Nm |
| Max torque through ball | = | 35 Nm |
| Weight | = | 30.2 g |
