SKU: E-MB8-FB8-FLEX

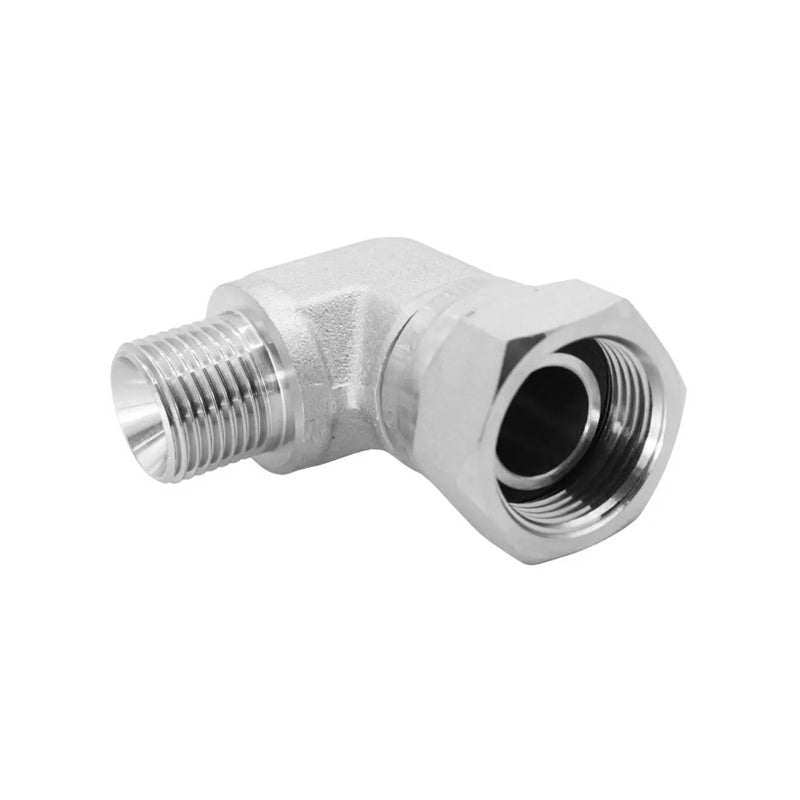

FLEXEQUIP 1/2 inch BSP Male to 1/2 inch BSP Female Swivel Hydraulic Adaptor with 90 Degree Angle Compact Elbow - Allow 2-3 Days
- Regular price
- €11,28 ex VAT
- Sale price
- €11,28
- Regular price
-
Quantity Price Breaks
FLEXEQUIP 1/2 inch BSP Male to 1/2 inch BSP Female Swivel Hydraulic Adaptor with 90 Degree Angle Compact Elbow - Allow 2-3 Days
- Regular price
- €11,28 ex VAT
- Sale price
- €11,28
- Regular price
-
Description
FLEXEQUIP BSP Male to BSP Female Swivel Hydraulic Adaptor with 90 Degree Angle Compact Elbow: These adaptors are versatile and durable solutions for connecting hydraulic components in tight spaces. Designed for efficient fluid transfer, these adaptors feature a 90 degree elbow for easy routing in confined areas and a swivel function for flexible installation. Available in various configurations such as M.M.M, Fm.Fm.Fm, M.Fm.M, and M.Fm.Fm, these adaptors provide options to suit different system requirements. You can choose between compact or swept styles, making it ideal for high-pressure hydraulic systems in industrial, automotive, and agricultural applications.
Benefits: Flexible installation, space-saving design, versatile configurations

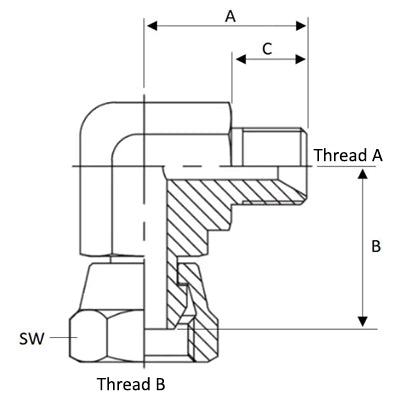

Technical
| Thread (A) | = | 1/2 BSP |
| Thread (B) | = | 1/2 BSP |
| Nut Size (SW) | = | 27mm |
| Length (A) | = | 34mm |
| Length (B) | = | 34mm |
| Thread Length (C) | = | 15mm |
| Angle | = | 90 degrees |
| Material | = | Zinc-Nickel Coated Steel |
| Weight | = | 0.169 kg |
