SKU: DL70/100-100X145X89

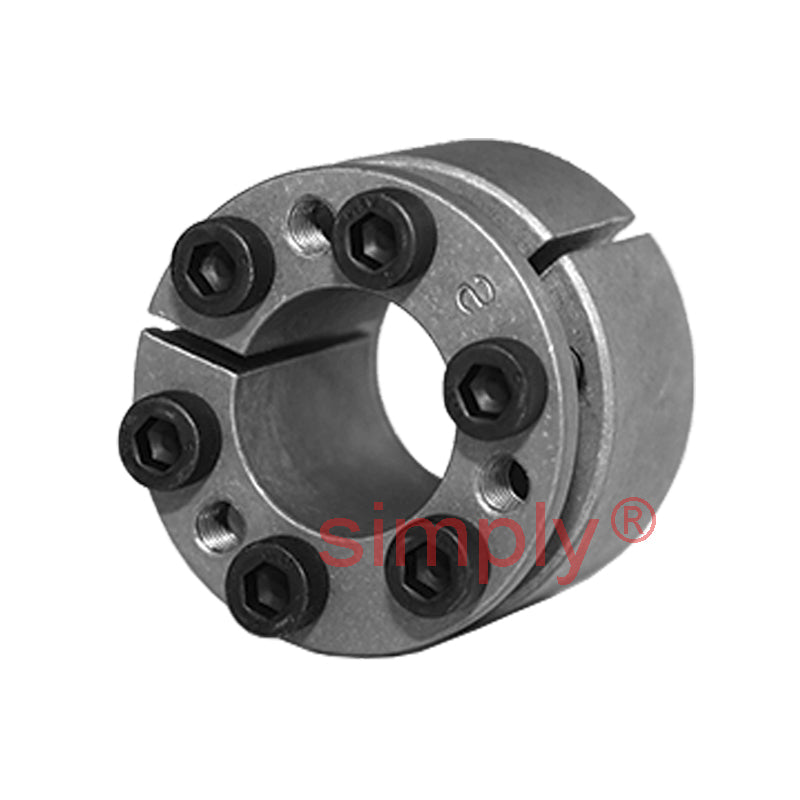

Major Branded DL70/100 Steel DRIVELOCK Bush 100x145x89mm - Allow 2-3 Days
- Regular price
- €69,69 ex VAT
- Sale price
- €69,69
- Regular price
-
Quantity Price Breaks
Major Branded DL70/100 Steel DRIVELOCK Bush 100x145x89mm - Allow 2-3 Days
- Regular price
- €69,69 ex VAT
- Sale price
- €69,69
- Regular price
-
Description
DRIVELOCK 70 Bushes: These bushes are self-centering components designed to deliver reliable performance for high-torque applications, handling loads ranging from 353 to 40,500 Nm. Their self-centering feature ensures precise alignment between the shaft and hub, reducing vibration and wear. These bushes accommodate a broad range of bore sizes, from 19mm to 180mm, with options for imperial sizes available upon request. They are ideal for heavy-duty machinery and equipment, providing a robust solution for demanding industrial environments.
Benefits: High torque capacity, self-centering accuracy, versatility in bore sizes
Technical
| Material | = | Steel |
| d (h8) | = | 100mm |
| D | = | 145mm |
| M (screws) | = | M12 |
| L | = | 89mm |
| B | = | 77mm |
| Ts | = | 145 Nm |
| T | = | 15396 Nm |
| F | = | 309 kN |
| p | = | 145 N/mm2 |
| Shaft | = | h8 |
| Hub | = | H8 |
| Weight Kg | = | 3.9 kg |
