SKU: DL50/35-35X40X7

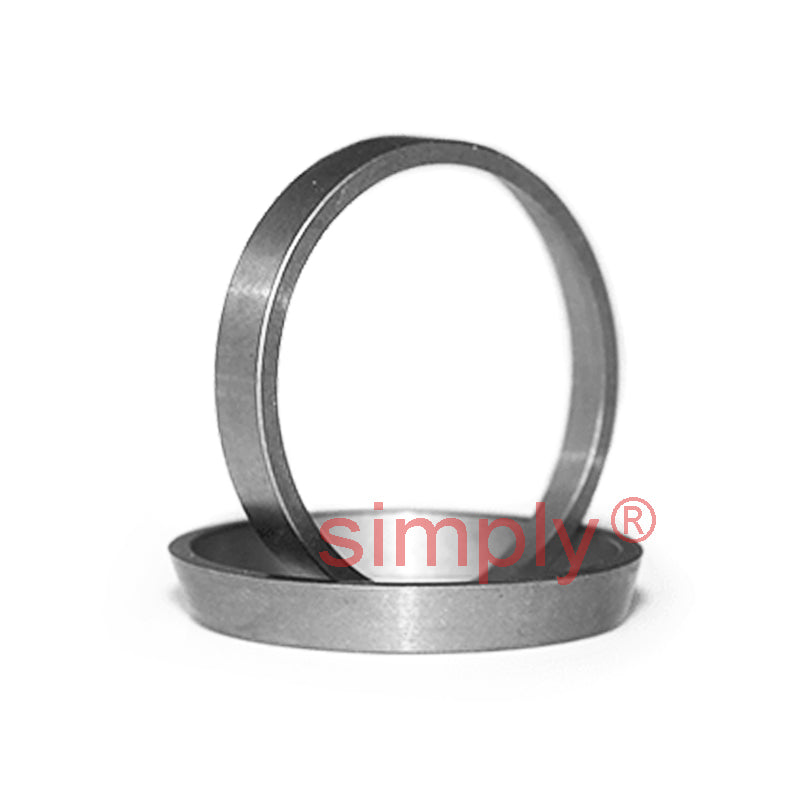

Major Branded DL50/35 Steel DRIVELOCK Bush 35x40x7mm - Allow 2-3 Days
- Regular price
- €7,48 ex VAT
- Sale price
- €7,48
- Regular price
-
Not in stock
Quantity Price Breaks
3
€6,66
5
€6,28
9
€6,21
19
€6,13
49
€6,06
74
€5,98
99
€5,61
199
€5,54
249
€5,46
499
€5,39
999
€5,24
SKU:
DL50/35-35X40X7
Major Branded DL50/35 Steel DRIVELOCK Bush 35x40x7mm - Allow 2-3 Days
- Regular price
- €7,48 ex VAT
- Sale price
- €7,48
- Regular price
-
Description
DRIVELOCK 50 Bushes: These bushes are compact, non-self-centering components designed for low-torque applications ranging from 2.4 to 1,300 Nm. Their small radial dimensions make them ideal for tight spaces, and they can be stacked up to four high to increase torque capacity as needed. Available in bore sizes from 6mm to 70mm, with options for imperial sizes, these bushes offer flexibility and adaptability for various machinery and equipment setups.
Benefits: Compact and space-efficient, stackable for increased torque, versatility in bore sizes
Technical
| Material | = | Steel |
| d | = | 35mm |
| D | = | 40mm |
| L | = | 7mm |
| T | = | 171 Nm |
| F | = | 9.77 Nm |
| P | = | 110 N/mm2 |
| Fa | = | 54 kN |
| Shaft | = | h6 |
| Hub | = | H7 |
| Weight Kg | = | 0.02 kg |
