Description

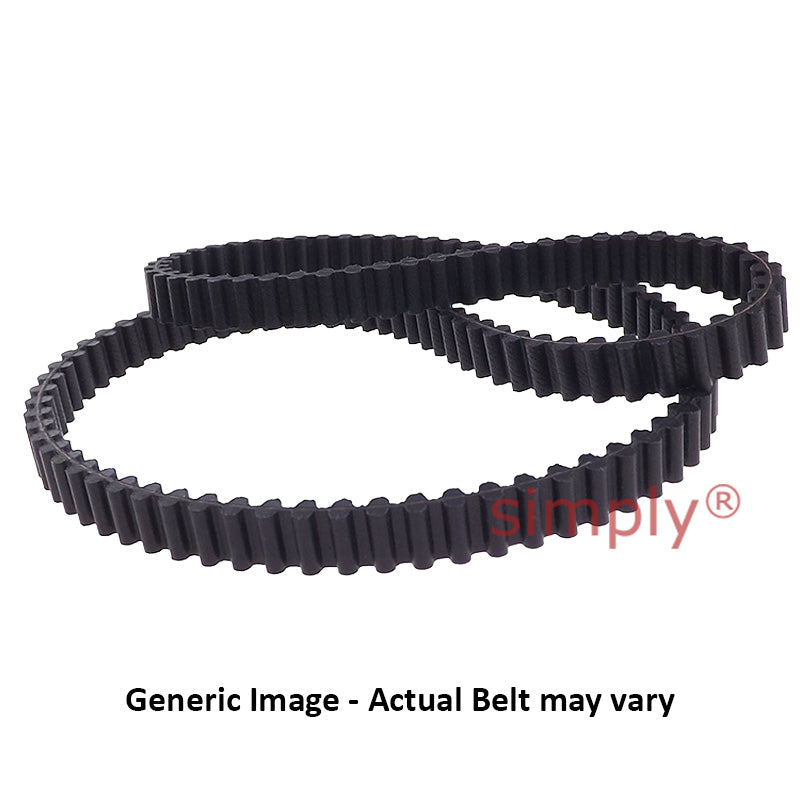

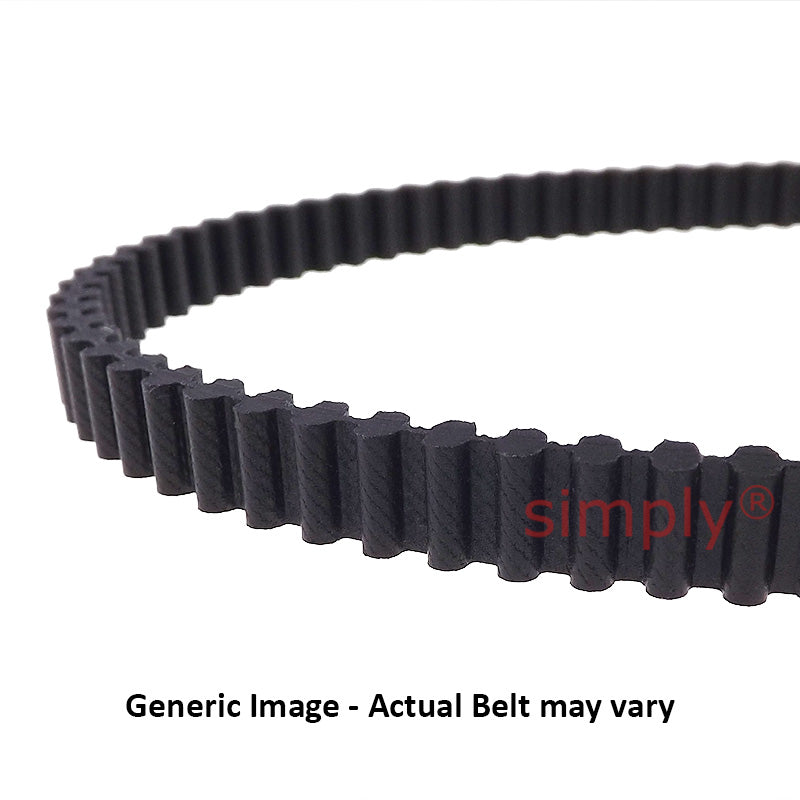

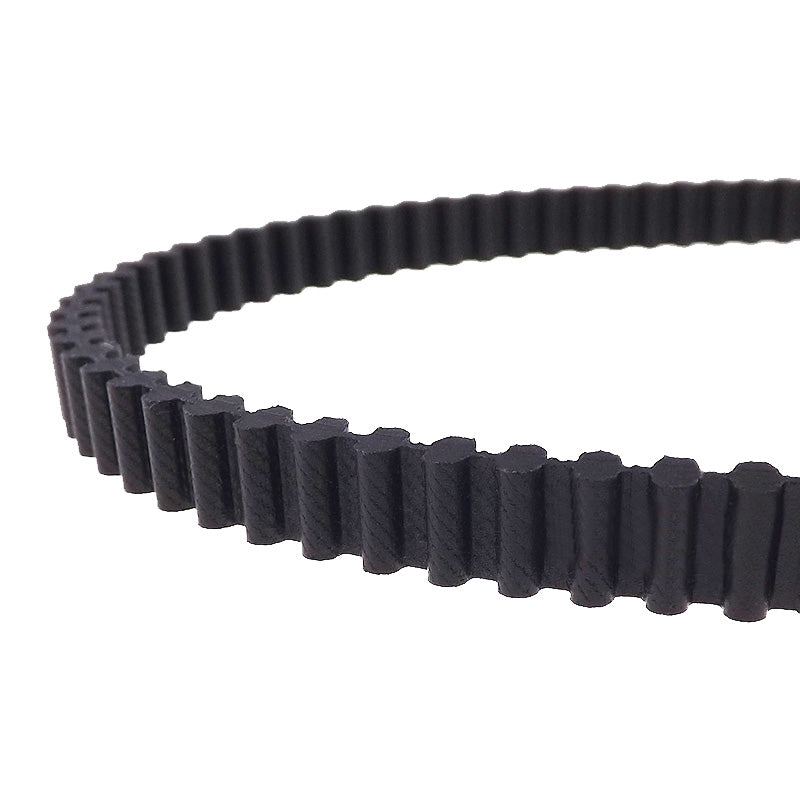

Double-Sided HTD Timing Belts 14mm Pitch Belt: Double-sided belts have teeth equally constructed on each side of the belt, which enables them to mesh with toothed pulleys on both the inside and outside. The construction of the belts is the same as standard Metric belts, except that the nylon facing is also on the backing teeth, enabling full torque transmission from each side of the belt.
Benefits: Reverse motion between internal and external pulleys
Require only one belt to drive a series of pulleys
Simplified design layouts and weight reduction.

Technical

Pitch length = 1190mm
Belt width = 55mm
Number of teeth = 85
Tooth pitch t = 14mm
Belt thickness h< = sub>
s< = /sub>
= 14.8mm
Tooth height h< = sub>
t< = /sub>
= 6mm
