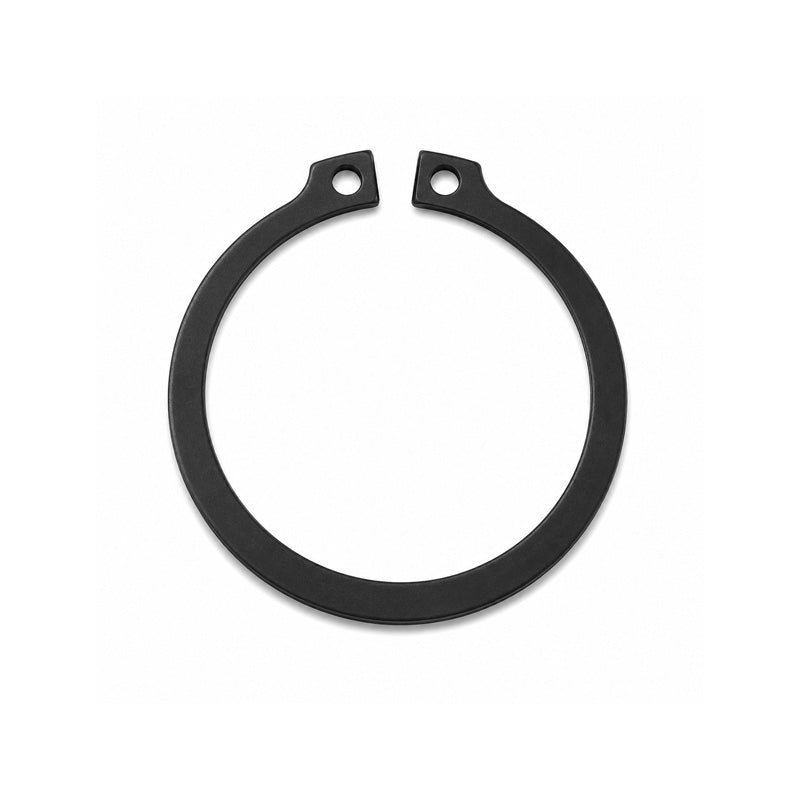

• External Circlip for 300mm Shaft Diameter Un-Sprung Diameter 285mm
1 1

SKU: D1400-300

External Circlip for 300mm Shaft Diameter Un-Sprung Diameter 285mm

External Circlip for 300mm Shaft Diameter Un-Sprung Diameter 285mm
€18,15 ex VAT
€18,15 ex VAT
Sale Sold out

Equivalent to: D1400-300

In stock

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
Simply Circlips - Economy Quality
Inside Diameter:
285mm
Material:
Sprung Carbon Steel
Shaft Size:
300mm
Thickness:
5mm
Groove Diameter:
292mm
Technical
--- Clip Dimensions
Shaft Size 300mm
Circlip thickness s 5mm
Thickness tolerance -0.12mm
Unstressed diameter d3 285mm
Unstressed diameter tolerance +0.81/-2.00mm
Lug a 16.2mm
Beam b 16mm
d5 5mm
Weight 440g
--- Groove Details
Groove diameter 292mm
Groove tolerance -0.81mm
Minimum groove width 5.15mm
Groove depth 4.00 mm
