SKU: CP-EXT-BJ-A41

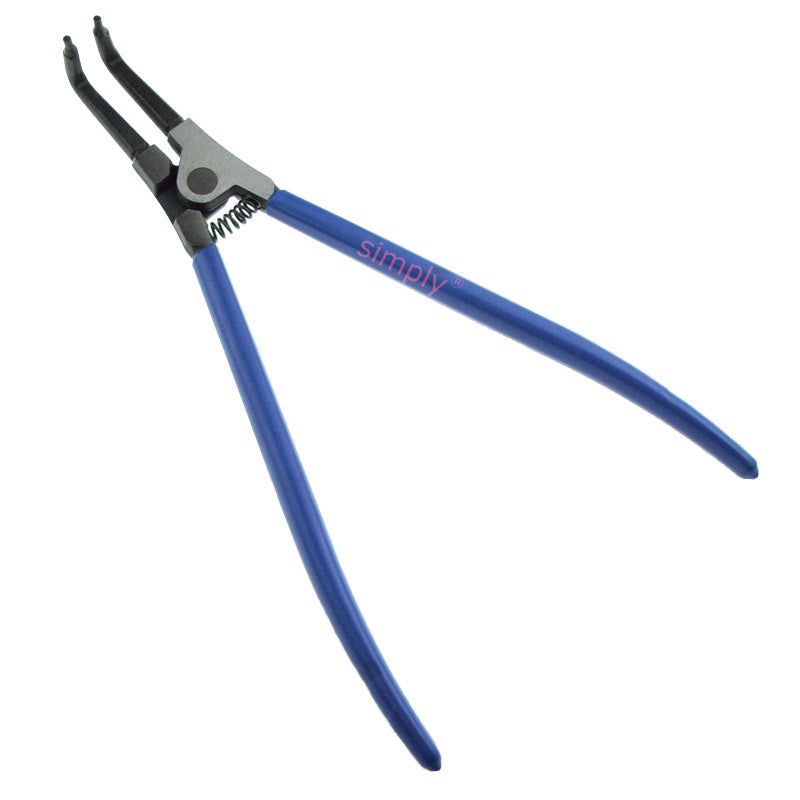

Professional External Bent Jaw Circlip Pliers for 85-165mm Circlips
- Regular price
- €37,52 ex VAT
- Sale price
- €37,52
- Regular price
-
Quantity Price Breaks
Professional External Bent Jaw Circlip Pliers for 85-165mm Circlips
- Regular price
- €37,52 ex VAT
- Sale price
- €37,52
- Regular price
-
Description
|
External Circlip Pliers: Designed to permit easy assembly and disassembly of machinery and equipment that utilize circlips. External pliers with straight jaws are designed for applications where easy straight on access is available to the circlip, the bent jaw versions introduce flexibility into the access of these circlips, e.g. the clip could be part way down a shaft - bent pliers would permit easy access but using straight ones the handles could foul the shaft. For instances where access is limited or obstructed bent pliers should be considered. Benefits: Safe removal and assembly of circlips |
Technical
| Tip diameter A | = | 3.21mm |
| Tip length B | = | 43.92mm |
| Tip height C | = | 23.45mm |
| Tip to pivot D | = | 67.8 |
| Handle length E | = | 199.5mm |
| Handle to pivot F | = | 224.25mm |
| Overall length G | = | 289mm |
| Max tip opening H | = | 58.52mm |
| Max handle opening J | = | 181.25 |
