SKU: CNBH-72-S

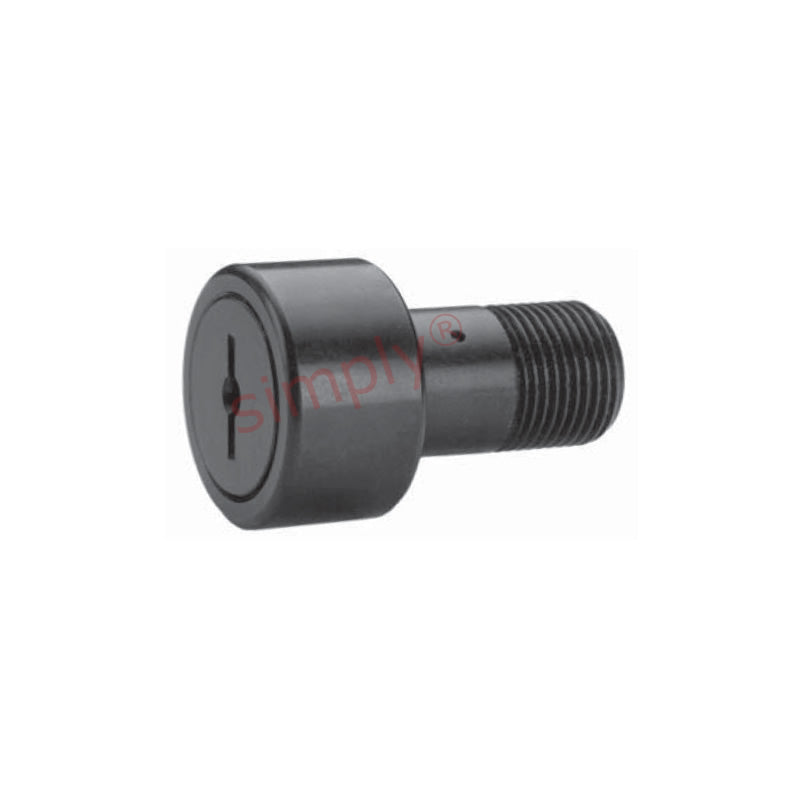

Major Brand CNBH72S Heavy Duty Sealed and Slotted Cylindrical Cam Follower 2-1/4 inch Outside Diameter Allow 7-10 Days
- Regular price
- €102,85 ex VAT
- Sale price
- €102,85
- Regular price
-
Not in stock
Quantity Price Breaks
3
€91,54
4
€86,39
9
€85,37
19
€84,34
29
€83,31
39
€82,28
49
€77,14
59
€76,11
249
€75,08
499
€74,05
999
€72,00
SKU:
CNBH-72-S
Major Brand CNBH72S Heavy Duty Sealed and Slotted Cylindrical Cam Follower 2-1/4 inch Outside Diameter Allow 7-10 Days
- Regular price
- €102,85 ex VAT
- Sale price
- €102,85
- Regular price
-
Description
|
Heavy Duty Sealed Cam Follower with Slotted Head: The outer race of this cam follower is high carbon chrome bearing steel through-hardened and ground. The studs and inner races are low carbon alloy steel carburized and induction hardened. This bearing contains a polymer type, lithium based grease containing corrosion resistant additives. This lubricant is suited to most bearing applications within a temperature range of 0 deg F to 250 deg F. Benefits: Suitable for many cam or track roller applications with moderate loading and shock, sealed to help prevent contamination and retain lubrication. |
Technical
| A | = | 2.25 inch |
| B | = | 1.25 inch |
| C | = | 1.125 inch |
| D | = | 2 inch |
| E | = | 1 inch |
| Thread class 2A F | = | 1-1/8-12 UNF |
| G | = | 1/2 inch |
| H | = | 1/8 inch |
| J | = | 3/16 inch |
| Min boss diameter | = | 1-13/32 inch |
| Recommended bore | = | 1.125 inch |
| Recommended torque | = | 2800 lbf-in |
| Max static capacity | = | 21140 lbs |
| Basic dynamic rating | = | 8090 lbs |
