Major Brand CNBH64S Heavy Duty Sealed and Slotted Cylindrical Cam Follower 2 inch Outside Diameter Allow 7-10 Days

SKU: CNBH-64-S

Major Brand CNBH64S Heavy Duty Sealed and Slotted Cylindrical Cam Follower 2 inch Outside Diameter Allow 7-10 Days

€130,50 ex VAT
€130,50
ex VAT
Equivalent to: CFH-2-S H-64-L HR-2-X CRSH-32
Not in stock

Quantity Price Breaks

3 €116,15
4 €109,62
9 €108,32
19 €107,01
29 €105,71
39 €104,40
49 €97,88
59 €96,57
249 €95,27
499 €93,96
999 €91,35
Return policy
90-Days Free Returns
Learn More
Low cost shipping
International Delivery
Learn More
Major Brand CNBH64S Heavy Duty Sealed and Slotted Cylindrical Cam Follower 2 inch Outside Diameter Allow 7-10 Days
SKU: CNBH-64-S

Major Brand CNBH64S Heavy Duty Sealed and Slotted Cylindrical Cam Follower 2 inch Outside Diameter Allow 7-10 Days

€130,50 ex VAT
€130,50
ex VAT

Description

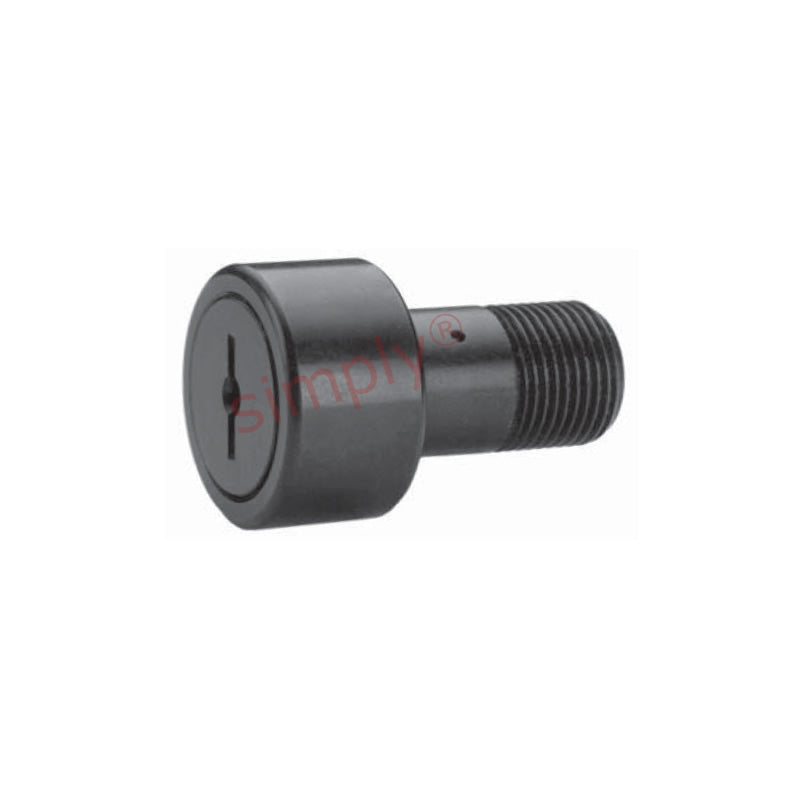

Heavy Duty Sealed Cam Follower with Slotted Head: The outer race of this cam follower is high carbon chrome bearing steel through-hardened and ground. The studs and inner races are low carbon alloy steel carburized and induction hardened. This bearing contains a polymer type, lithium based grease containing corrosion resistant additives. This lubricant is suited to most bearing applications within a temperature range of 0 deg F to 250 deg F.
Benefits: Suitable for many cam or track roller applications with moderate loading and shock, sealed to help prevent contamination and retain lubrication.

Technical

A = 2 inch
B = 1.25 inch
C = 1.125 inch
D = 2 inch
E = 1 inch
Thread class 2A F = 1-1/8-12 UNF
G = 1/2 inch
H = 1/8 inch
J = 3/16 inch
Min boss diameter = 1-13/32 inch
Recommended bore = 1.125 inch
Recommended torque = 2800 lbf-in
Max static capacity = 21140 lbs
Basic dynamic rating = 8090 lbs
