SKU: CNBH-44-S

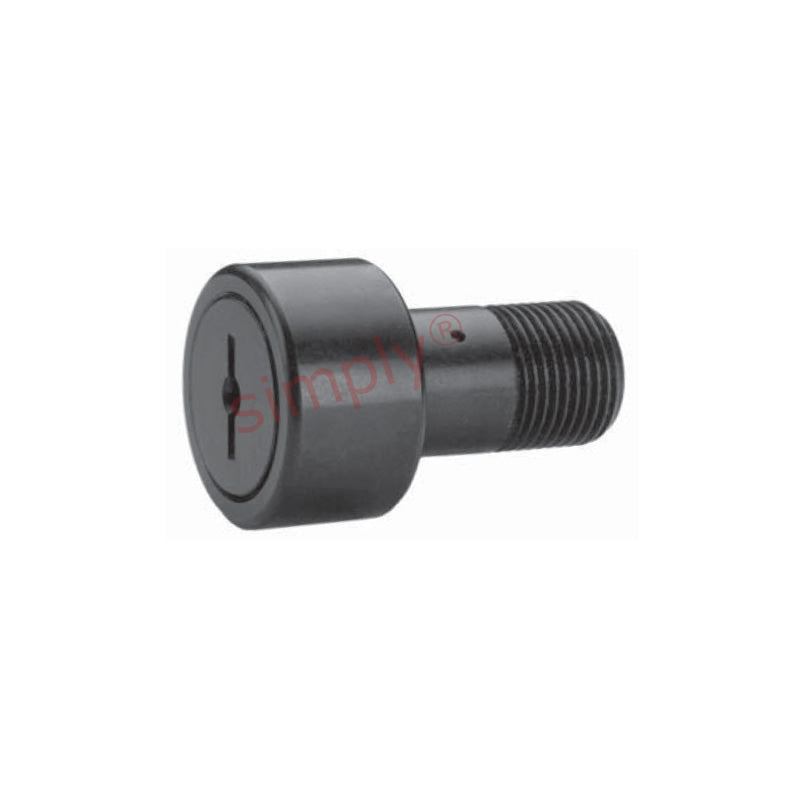

Major Brand CNBH44S Heavy Duty Sealed and Slotted Cylindrical Cam Follower 1-3/8 inch Outside Diameter Allow 7-10 Days
- Regular price
- €55,75 ex VAT
- Sale price
- €55,75
- Regular price
-
Not in stock
Quantity Price Breaks
3
€49,62
4
€46,83
9
€46,27
19
€45,72
29
€45,16
39
€44,60
49
€41,81
59
€41,26
249
€40,70
499
€40,14
999
€39,03
SKU:
CNBH-44-S
Major Brand CNBH44S Heavy Duty Sealed and Slotted Cylindrical Cam Follower 1-3/8 inch Outside Diameter Allow 7-10 Days
- Regular price
- €55,75 ex VAT
- Sale price
- €55,75
- Regular price
-
Description
|
Heavy Duty Sealed Cam Follower with Slotted Head: The outer race of this cam follower is high carbon chrome bearing steel through-hardened and ground. The studs and inner races are low carbon alloy steel carburized and induction hardened. This bearing contains a polymer type, lithium based grease containing corrosion resistant additives. This lubricant is suited to most bearing applications within a temperature range of 0 deg F to 250 deg F. Benefits: Suitable for many cam or track roller applications with moderate loading and shock, sealed to help prevent contamination and retain lubrication. |
Technical
| A | = | 1.375 inch |
| B | = | 0.75 inch |
| C | = | 0.75 inch |
| D | = | 1.25 inch |
| E | = | 0.625 inch |
| Thread class 2A F | = | 3/4-16 UNF |
| G | = | 5/16 inch |
| H | = | 3/32 inch |
| J | = | 3/16 inch |
| Min boss diameter | = | 63/64 inch |
| Recommended bore | = | 0.75 inch |
| Recommended torque | = | 1250 lbf-in |
| Max static capacity | = | 8500 lbs |
| Basic dynamic rating | = | 3930 lbs |
