SKU: CNB-88-S

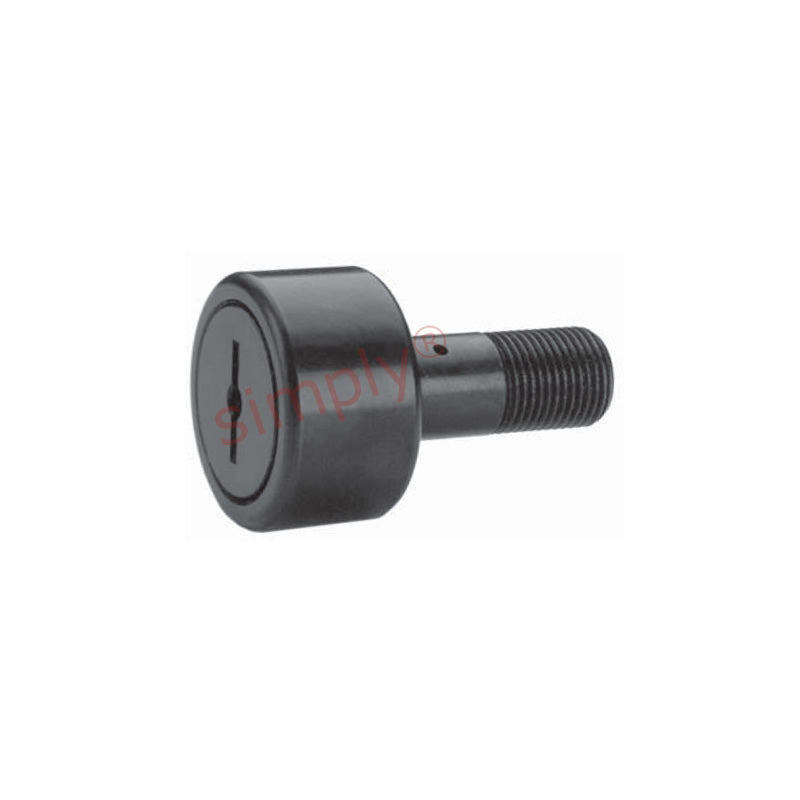

Major Brand CNB88S Sealed and Slotted Cylindrical Cam Follower 2-3/4 inch Outside Diameter Allow 7-10 Days
- Regular price
- €162,09 ex VAT
- Sale price
- €162,09
- Regular price
-
Not in stock
Quantity Price Breaks
3
€144,26
4
€136,16
9
€134,53
19
€132,91
29
€131,29
39
€129,67
49
€121,57
59
€119,95
249
€118,33
499
€116,70
999
€113,46
SKU:
CNB-88-S
Major Brand CNB88S Sealed and Slotted Cylindrical Cam Follower 2-3/4 inch Outside Diameter Allow 7-10 Days
- Regular price
- €162,09 ex VAT
- Sale price
- €162,09
- Regular price
-
Description
|
Sealed Cam Follower with Slotted Head: The outer race of this cam follower is high carbon chrome bearing steel through-hardened and ground. The studs and inner races are low carbon alloy steel carburized and induction hardened. This bearing contains a polymer type, lithium based grease containing corrosion resistant additives. This lubricant is suited to most bearing applications within a temperature range of 0 deg F to 250 deg F. Benefits: Suitable for many cam or track roller applications with moderate loading and shock, sealed to help prevent contamination and retain lubrication. |
Technical
| A | = | 2.75 inch |
| B | = | 1.5 inch |
| C | = | 1 inch |
| D | = | 2.25 inch |
| E | = | 1.125 inch |
| Thread class 2A F | = | 1-14 UNS |
| G | = | 9/16 inch |
| H | = | 1/8 inch |
| J | = | 3/16 inch |
| Min boss diameter | = | 15/16 inch |
| Recommended bore | = | 1 inch |
| Recommended torque | = | 2250 lbf-in |
| Max static capacity | = | 16450 lbs |
| Basic dynamic rating | = | 11720 lbs |
