SKU: CNB-64-S

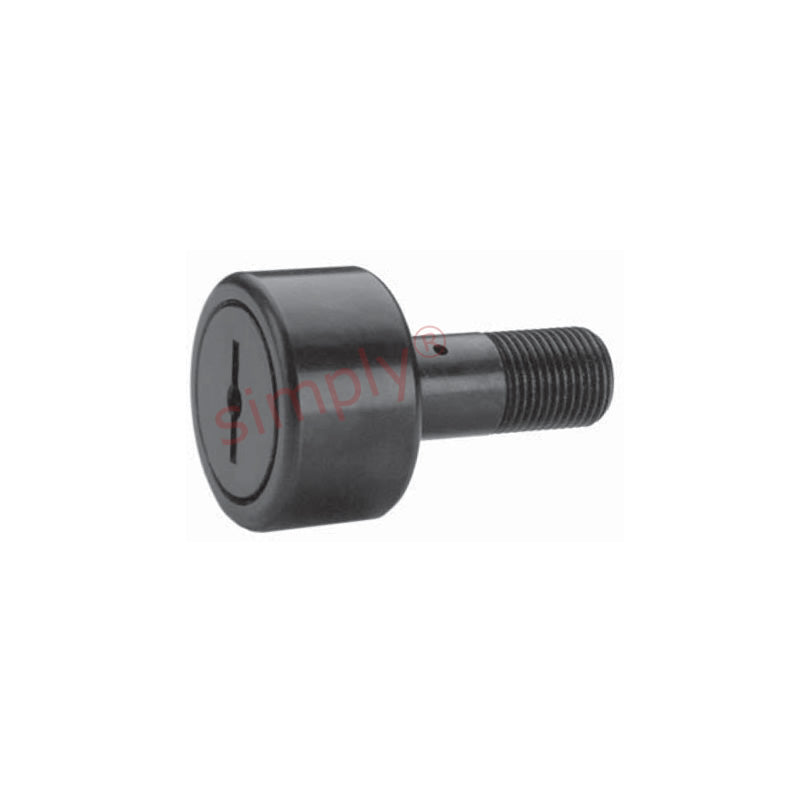

Major Brand CNB64S Sealed and Slotted Cylindrical Cam Follower 2 inch Outside Diameter
- Regular price
- €95,00 ex VAT
- Sale price
- €95,00
- Regular price
-
In stock
Quantity Price Breaks
3
€84,55
4
€79,80
9
€78,85
19
€77,90
29
€76,95
39
€76,00
49
€71,25
59
€70,30
249
€69,35
499
€68,40
999
€66,50
SKU:
CNB-64-S
Major Brand CNB64S Sealed and Slotted Cylindrical Cam Follower 2 inch Outside Diameter
- Regular price
- €95,00 ex VAT
- Sale price
- €95,00
- Regular price
-
Description
|
Sealed Cam Follower with Slotted Head: The outer race of this cam follower is high carbon chrome bearing steel through-hardened and ground. The studs and inner races are low carbon alloy steel carburized and induction hardened. This bearing contains a polymer type, lithium based grease containing corrosion resistant additives. This lubricant is suited to most bearing applications within a temperature range of 0 deg F to 250 deg F. Benefits: Suitable for many cam or track roller applications with moderate loading and shock, sealed to help prevent contamination and retain lubrication. |
Technical
| A | = | 2 inch |
| B | = | 1.25 inch |
| C | = | 0.875 inch |
| D | = | 2 inch |
| E | = | 1 inch |
| Thread class 2A F | = | 7/8-14 UNF |
| G | = | 1/2 inch |
| H | = | 1/8 inch |
| J | = | 3/16 inch |
| Min boss diameter | = | 1-13/64 inch |
| Recommended bore | = | 0.875 inch |
| Recommended torque | = | 1500 lbf-in |
| Max static capacity | = | 10570 lbs |
| Basic dynamic rating | = | 8090 lbs |
