SKU: CNB-32-S
Major Brand CNB32S Sealed and Slotted Cylindrical Cam Follower 1 inch Outside Diameter
- Regular price
- €41,29 ex VAT
- Sale price
- €41,29
- Regular price
-
In stock
Quantity Price Breaks
3
€36,75
4
€34,68
9
€34,27
19
€33,86
29
€33,44
39
€33,03
49
€30,97
59
€30,55
249
€30,14
499
€29,73
999
€28,90
SKU:
CNB-32-S
Major Brand CNB32S Sealed and Slotted Cylindrical Cam Follower 1 inch Outside Diameter
- Regular price
- €41,29 ex VAT
- Sale price
- €41,29
- Regular price
-
Description
|
Sealed Cam Follower with Slotted Head: The outer race of this cam follower is high carbon chrome bearing steel through-hardened and ground. The studs and inner races are low carbon alloy steel carburized and induction hardened. This bearing contains a polymer type, lithium based grease containing corrosion resistant additives. This lubricant is suited to most bearing applications within a temperature range of 0 deg F to 250 deg F. Benefits: Suitable for many cam or track roller applications with moderate loading and shock, sealed to help prevent contamination and retain lubrication. |

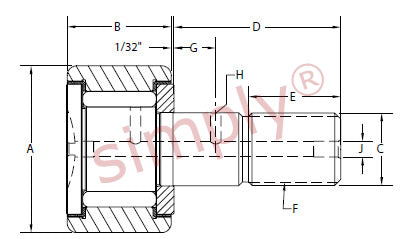

Technical
| A | = | 1 inch |
| B | = | 0.625 inch |
| C | = | 0.4375 inch |
| D | = | 1 inch |
| E | = | 0.5 inch |
| Thread class 2A F | = | 7/16-20 UNF |
| G | = | 1/4 inch |
| H | = | 3/32 inch |
| J | = | 3/16 inch |
| Min boss diameter | = | 41/64 inch |
| Recommended bore | = | 0.4375 inch |
| Recommended torque | = | 250 lbf-in |
| Max static capacity | = | 3060 lbs |
| Basic dynamic rating | = | 2225 lbs |
