SKU: BPES-10-105-SET-SNR

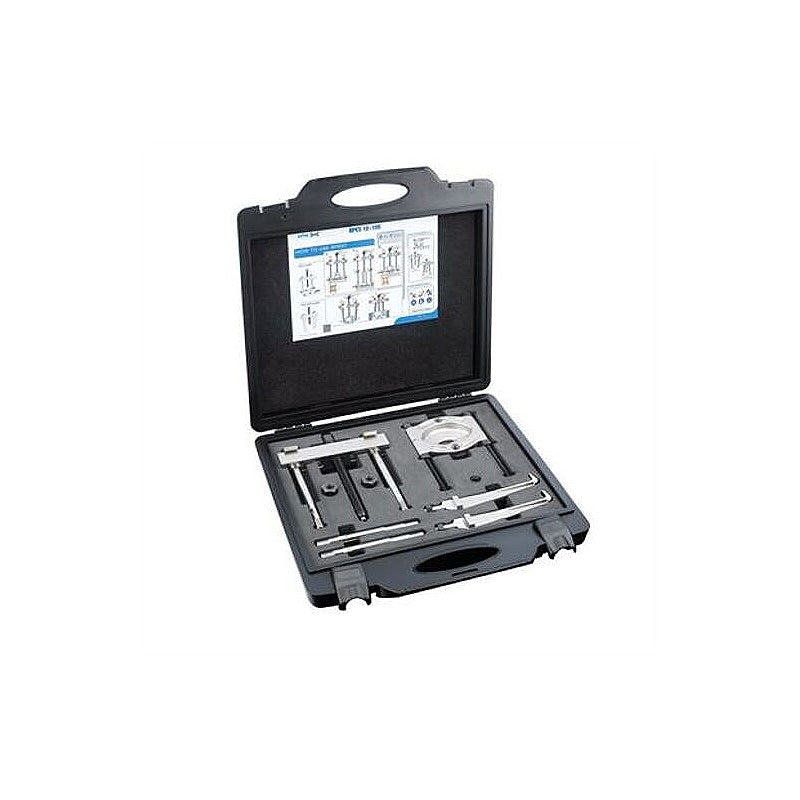

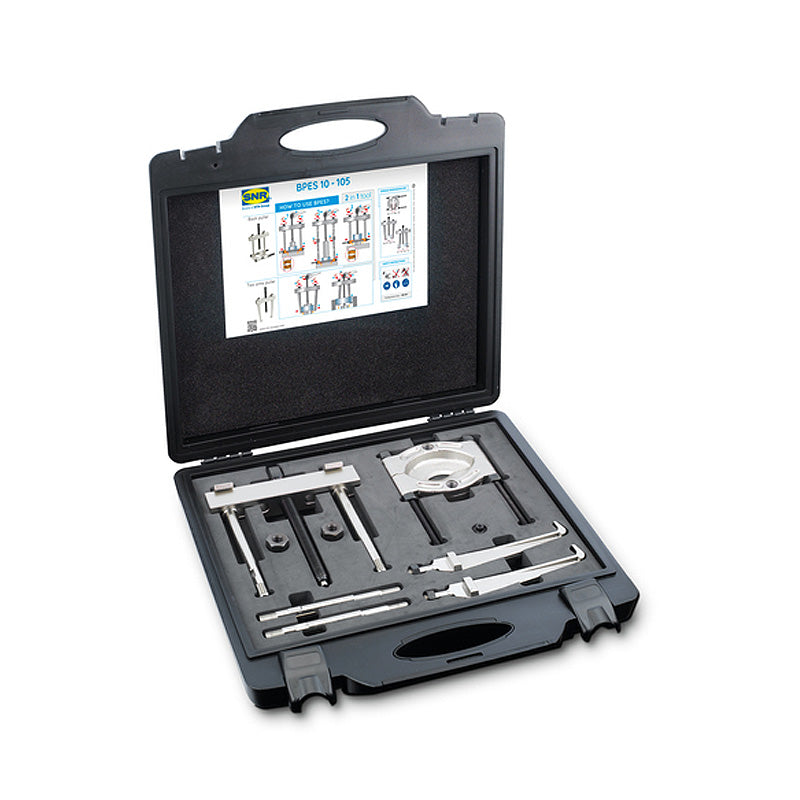

SNR BPES 10-105 Back Puller Kit for Internal and External Gripping - Allow 2-3 Days
- Regular price
- €392,11 ex VAT
- Sale price
- €392,11
- Regular price
-
Not in stock
Quantity Price Breaks
3
€348,98
5
€329,37
9
€325,45
19
€321,53
49
€317,61
74
€313,69
99
€294,08
199
€290,16
249
€286,24
499
€282,32
999
€274,48
SKU:
BPES-10-105-SET-SNR
SNR BPES 10-105 Back Puller Kit for Internal and External Gripping - Allow 2-3 Days
- Regular price
- €392,11 ex VAT
- Sale price
- €392,11
- Regular price
-
Description
SNR BPES Back Puller Kit: This back puller is both a puller and separator which is an essential tool for extraction by internal or external gripping. The seperator allows for removal of a tight-fitting bearing ring in contact with a shoulder.
Benefits: High-quality and multi-functional.
Technical

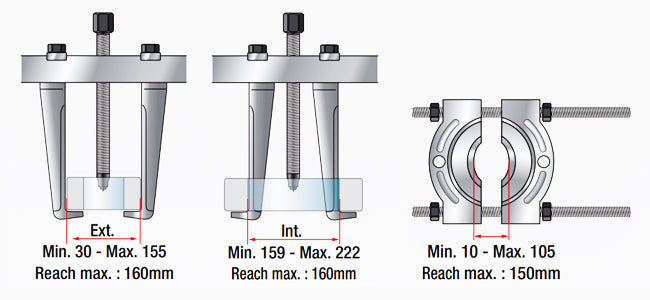

| Capacity | = | 10000kg |
| Separator Shaft Diameter Range | = | 10mm - 105mm |
| Separator Outside Diameter Range | = | Maximum of 175mm |
| Separator Max Reach | = | 150mm |
| Internal Gripper Puller Bore Diameter Range | = | 159mm - 222mm |
| Internal Gripper Puller Maximum Reach | = | 160mm |
| External Gripper Puller Outside Diameter Range | = | 30mm - 155mm |
| External Gripper Puller Maximum Reach | = | 160mm |
| Case Dimensions | = | 490x500x130mm |
| Contents | = | x1 Adjustable Bridge, x1 Separator, x2 Removable Puller Arms, x2 Extensions, x1 Tip Protector, x2 Coupling Nuts |
| Weight | = | 11kg |
