SKU: BP3S-90-340-TRI-SNR

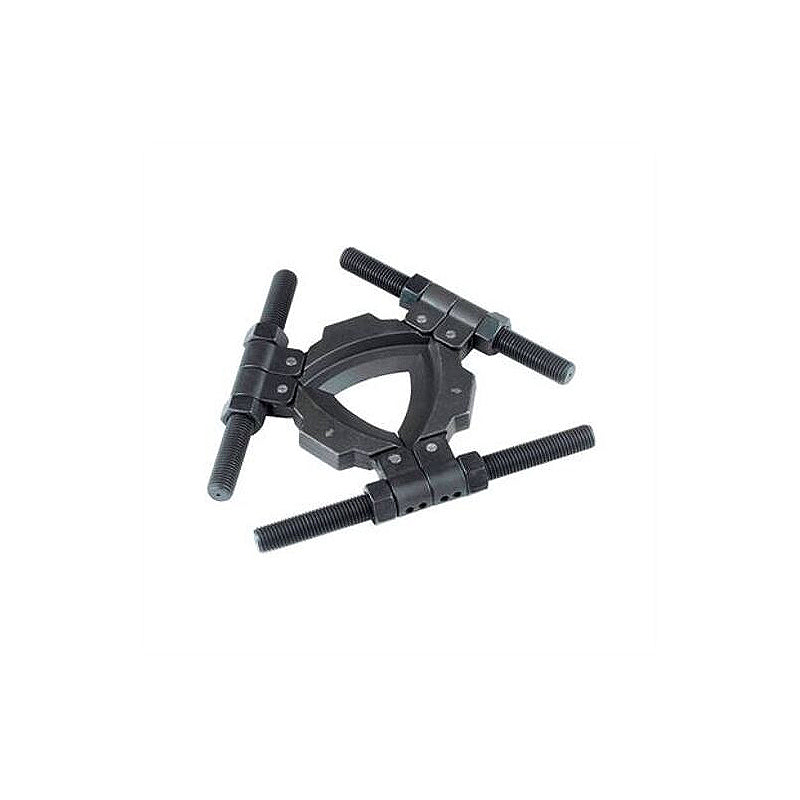

SNR BP3S 90-340 Tri-Section Pulling Plate 90x340x45mm - Allow 2-3 Days
- Regular price
- €1.248,17 ex VAT
- Sale price
- €1.248,17
- Regular price
-
Not in stock
Quantity Price Breaks
3
€1.110,87
5
€1.048,46
9
€1.035,98
19
€1.023,50
49
€1.011,02
74
€998,54
99
€936,13
199
€923,65
249
€911,16
499
€898,68
999
€873,72
SKU:
BP3S-90-340-TRI-SNR
SNR BP3S 90-340 Tri-Section Pulling Plate 90x340x45mm - Allow 2-3 Days
- Regular price
- €1.248,17 ex VAT
- Sale price
- €1.248,17
- Regular price
-
Description
SNR BP3S Tri-Section Pulling Plates: These Tri-Section Pulling Plates offer a wide range of adjustments which are also available in four dimensions. Capable of holding parts with a diameter from 26mm up to 495mm. These Pulling Plates are to be used with the suitable SNR Three-Arm Puller which can be determined by required size and power.
Benefits: High-quality and Wide range of adjustment.
Technical
| Capacity | = | 12000kg |
| Minimum Shaft Diameter A1 | = | 90mm |
| Maximum Shaft Diameter | = | 340mm |
| Max Spread B | = | 460mm |
| Length D | = | 430mm |
| Thread E | = | 7/8 inch - 16 UNF |
| Thickness F | = | 45mm |
| Material | = | Forged Steel Alloy |
| Weight | = | 16.5kg |
