SKU: BP3S-26-160-TRI-SNR

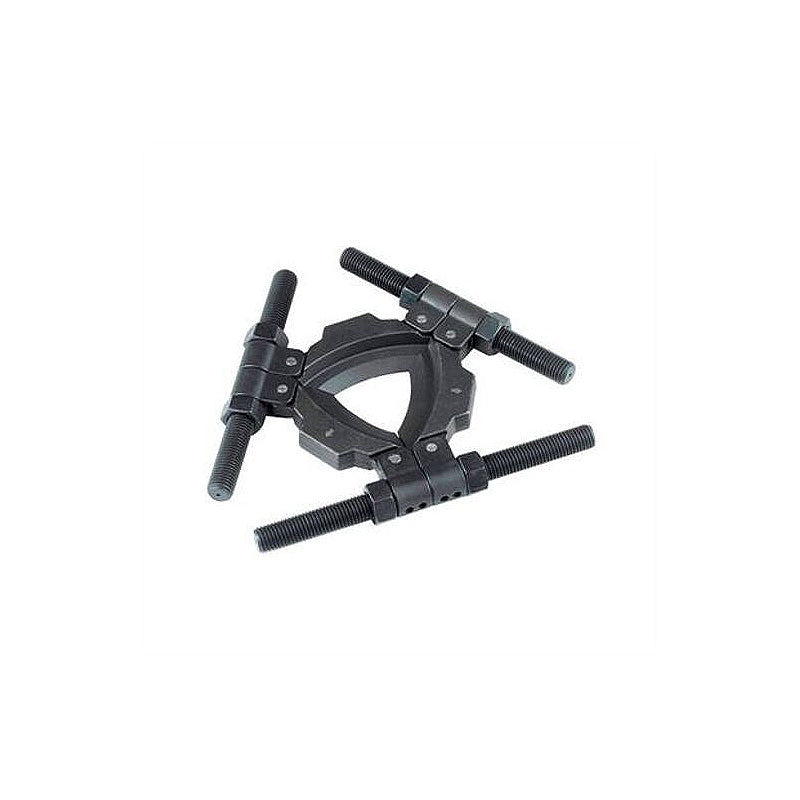

SNR BP3S 26-160 Tri-Section Pulling Plate 26x160x8mm - Allow 2-3 Days
- Regular price
- €375,48 ex VAT
- Sale price
- €375,48
- Regular price
-
Not in stock
Quantity Price Breaks
3
€334,18
5
€315,40
9
€311,65
19
€307,89
49
€304,14
74
€300,38
99
€281,61
199
€277,86
249
€274,10
499
€270,35
999
€262,84
SKU:
BP3S-26-160-TRI-SNR
SNR BP3S 26-160 Tri-Section Pulling Plate 26x160x8mm - Allow 2-3 Days
- Regular price
- €375,48 ex VAT
- Sale price
- €375,48
- Regular price
-
Description
SNR BP3S Tri-Section Pulling Plates: These Tri-Section Pulling Plates offer a wide range of adjustments which are also available in four dimensions. Capable of holding parts with a diameter from 26mm up to 495mm. These Pulling Plates are to be used with the suitable SNR Three-Arm Puller which can be determined by required size and power.
Benefits: High-quality and Wide range of adjustment.
Technical

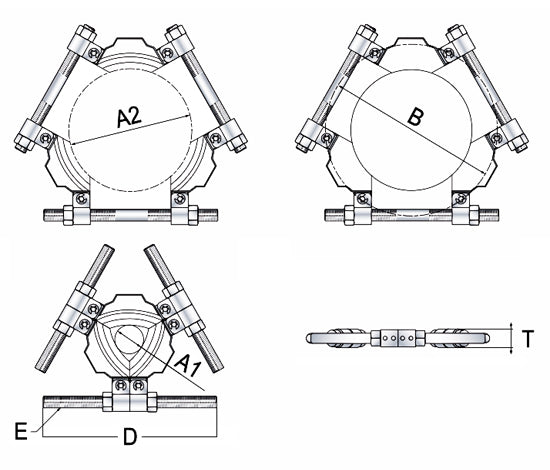

| Capacity | = | 4000kg |
| Minimum Shaft Diameter A1 | = | 26mm |
| Maximum Shaft Diameter | = | 160mm |
| Max Spread B | = | 216mm |
| Length D | = | 240mm |
| Thread E | = | 5/8 inch - 11 UNC |
| Thickness F | = | 8mm |
| Material | = | Forged Steel Alloy |
| Weight | = | 3.5kg |
