SKU: BK2516-MB

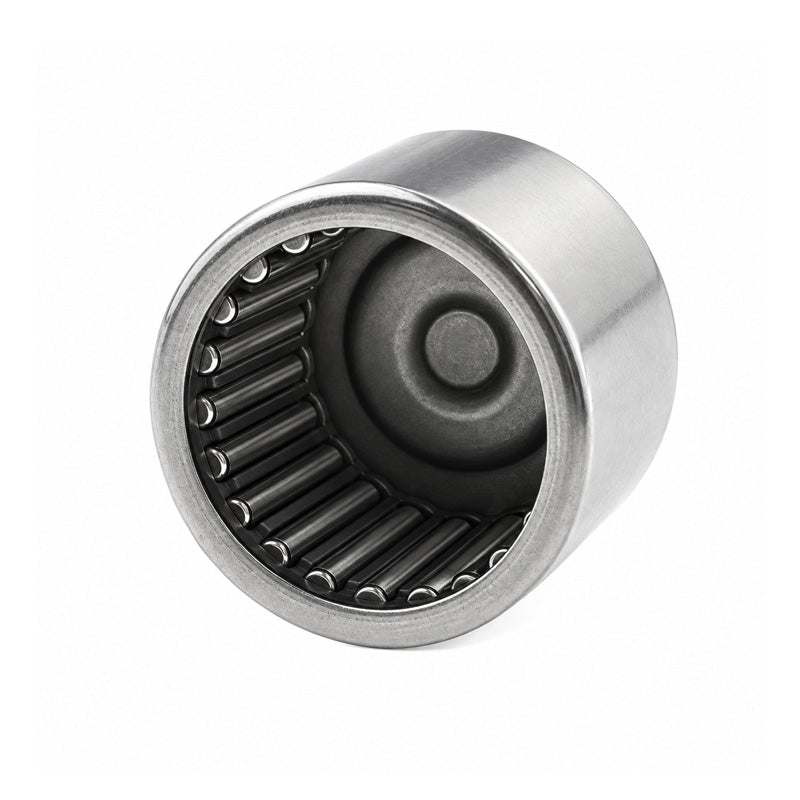

Major Brand BK2516 Drawn Cup Type Needle Roller Bearing with One Closed End25x32x16mm
- Regular price
- €21,34 ex VAT
- Sale price
- €21,34
- Regular price
-
In stock
Quantity Price Breaks
10
€18,99
19
€17,93
29
€17,71
39
€17,50
49
€17,29
74
€17,07
99
€16,01
199
€15,79
249
€15,58
499
€15,36
999
€14,94
SKU:
BK2516-MB
Major Brand BK2516 Drawn Cup Type Needle Roller Bearing with One Closed End25x32x16mm
- Regular price
- €21,34 ex VAT
- Sale price
- €21,34
- Regular price
-
Description
|
BK Type Drawn Cup Needle Roller Bearings: As the name suggests are needle roller bearings with a deep drawn thin-walled outer ring with one open end. They are characterised by low sectional height and high load carrying ability. They are ideal where a very compact and economical bearing arrangement is required. The RS series are fitted with a nitrile rubber seal. Benefits: Compact low cross section design, high load bearing, low cost and economical, available in sealed and unsealed options. Requires only a bored housing for deployment, the simplest of housing designs. |
Technical
| Fw | = | 25mm |
| D | = | 32mm |
| C | = | 16mm |
| Dynamic load | = | 15.1 N |
| Static load | = | 24 N |
| Fatigue load limit Pu | = | 2.85 N |
| Speed in grease | = | 11000 rpm |
| Speed in oil | = | 9500 rpm |
| C1 | = | 16mm |
| r1r2 min | = | 0.8mm |
| Da max | = | 27mm |
| ra max | = | 0.8mm |
| Inner ring | = | IR20x25x17 |
| Seal | = | G25x32x4 |
| Weight | = | 32 g |
