SKU: BH1616-KOYO

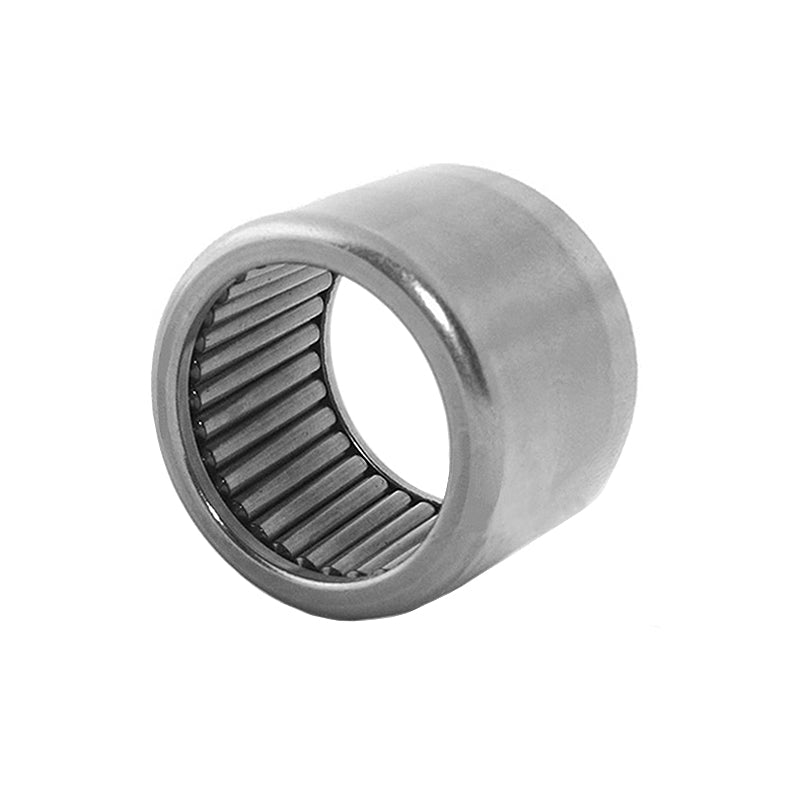

Major Branded BH1616 Imperial Drawn Cup Open End Type Full Complement Needle Roller Bearing 1x1-5/16x1 inch
- Regular price
- €17,03 ex VAT
- Sale price
- €17,03
- Regular price
-
In stock
Quantity Price Breaks
5
€15,16
9
€14,31
19
€14,13
29
€13,96
49
€13,79
74
€13,62
99
€12,77
199
€12,60
249
€12,43
499
€12,26
999
€11,92
SKU:
BH1616-KOYO
Major Branded BH1616 Imperial Drawn Cup Open End Type Full Complement Needle Roller Bearing 1x1-5/16x1 inch
- Regular price
- €17,03 ex VAT
- Sale price
- €17,03
- Regular price
-
Description
Full Complement Needle Roller Bearings: Of similar construction to the common HK and TA series needle roller bearings but having no cage and twice the number of rollers occupying the same space to permit greater load carrying capacity. Often referred to as crowded roller construction. |
Technical
| Inside Diameter | = | 25.4mm = 1 inch |
| Outside Diameter | = | 33.33mm = 1.3125 inch |
| Width | = | 25.4mm = 1 inch |
| Dynamic load C | = | 36.5 kN |
| Static load Co | = | 70.3 kN |
| S max | = | 25.4mm = 1 inch |
| S min | = | 25.387mm = 0.9995 inch |
| H max | = | 33.35mm = 1.313 inch |
| H min | = | 33.325mm = 1.312 inch |
