SKU: BH-3316

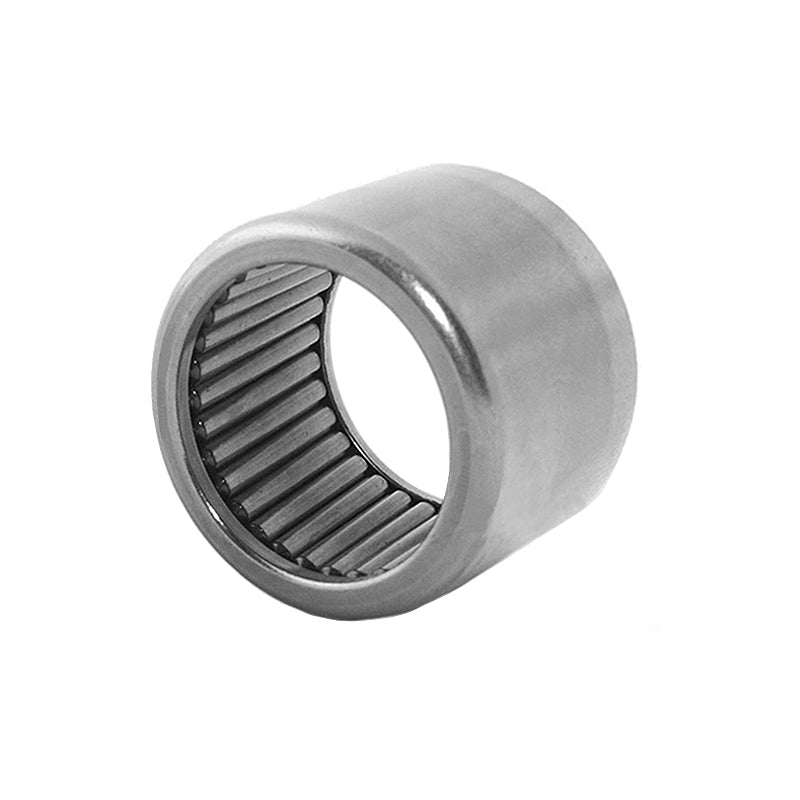

Major Branded BH3316 Imperial Drawn Cup Open End Type Full Complement Needle Roller Bearing 2-1/16x2-17/32x1 inch
- Regular price
- €204,67 ex VAT
- Sale price
- €204,67
- Regular price
-
Not in stock
Quantity Price Breaks
5
€182,16
9
€171,92
19
€169,88
29
€167,83
49
€165,78
74
€163,74
99
€153,50
199
€151,46
249
€149,41
499
€147,36
999
€143,27
SKU:
BH-3316
Major Branded BH3316 Imperial Drawn Cup Open End Type Full Complement Needle Roller Bearing 2-1/16x2-17/32x1 inch
- Regular price
- €204,67 ex VAT
- Sale price
- €204,67
- Regular price
-
Description
Full Complement Needle Roller Bearings: Of similar construction to the common HK and TA series needle roller bearings but having no cage and twice the number of rollers occupying the same space to permit greater load carrying capacity. Often referred to as crowded roller construction. |
Technical

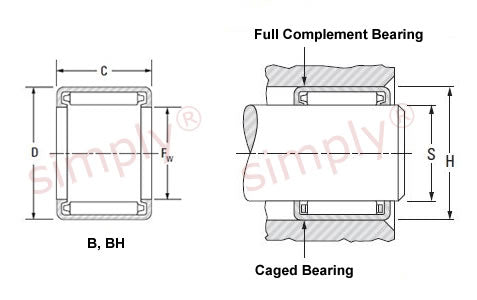

| Inside Diameter | = | 52.39mm = 2.0625 inch |
| Outside Diameter | = | 64.29mm = 2.5312 inch |
| Width | = | 25.4mm = 1 inch |
| Dynamic load C | = | 64 kN |
| Static load Co | = | 133 kN |
| S max | = | 52.388mm = 2.0625 inch |
| S min | = | 52.372mm = 2.0619 inch |
| H max | = | 64.305mm = 2.5317 inch |
| H min | = | 64.28mm = 2.5307 inch |
