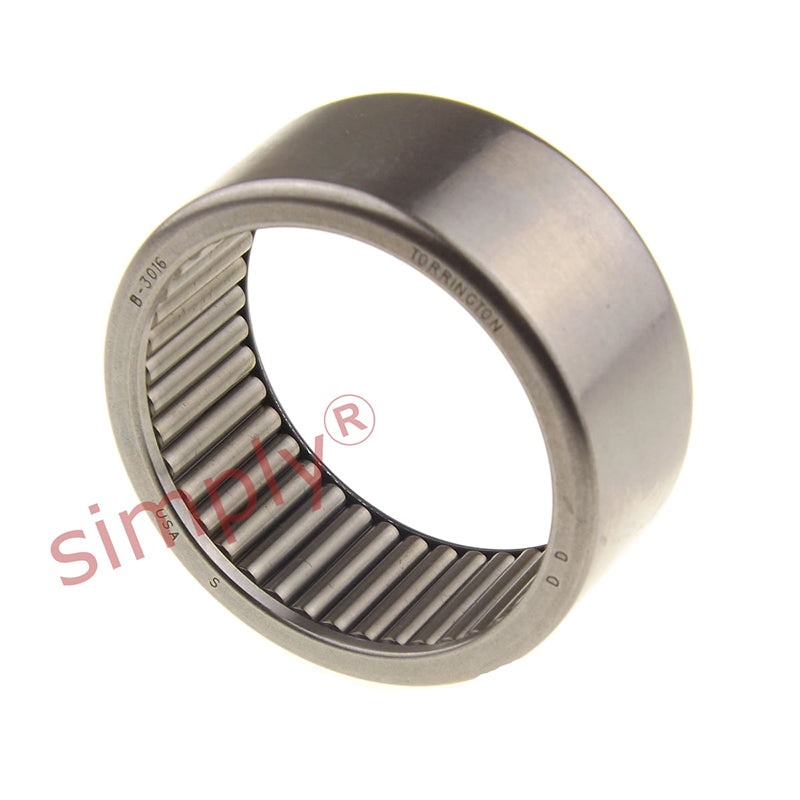

Major Branded B3016 Imperial Drawn Cup Open End Type Full Complement Needle Roller Bearing 1-7/8x2-1/4x1 inch

SKU: B-3016

Major Branded B3016 Imperial Drawn Cup Open End Type Full Complement Needle Roller Bearing 1-7/8x2-1/4x1 inch

€27,65 ex VAT
€27,65
ex VAT
In stock

Quantity Price Breaks

5 €24,61
9 €23,23
19 €22,95
29 €22,67
49 €22,40
74 €22,12
99 €20,74
199 €20,46
249 €20,18
499 €19,91
999 €19,36
Return policy
90-Days Free Returns
Learn More
Low cost shipping
International Delivery
Learn More
Major Branded B3016 Imperial Drawn Cup Open End Type Full Complement Needle Roller Bearing 1-7/8x2-1/4x1 inch
SKU: B-3016

Major Branded B3016 Imperial Drawn Cup Open End Type Full Complement Needle Roller Bearing 1-7/8x2-1/4x1 inch

€27,65 ex VAT
€27,65
ex VAT

Description

Full Complement Needle Roller Bearings: Of similar construction to the common HK and TA series needle roller bearings but having no cage and twice the number of rollers occupying the same space to permit greater load carrying capacity. Often referred to as crowded roller construction.
Benefits: Compact space saving design, High load capacity.

Technical

Inside Diameter = 47.63mm = 1.875 inch
Outside Diameter = 57.15mm = 2.25 inch
Width = 25.4mm = 1 inch
Dynamic load C = 56 kN
Static load Co = 130 kN
S max = 47.625mm = 1.875 inch
S min = 47.612mm = 1.8745 inch
H max = 57.163mm = 2.2505 inch
H min = 57.137mm = 2.2495 inch
