SKU: AX41730-MB

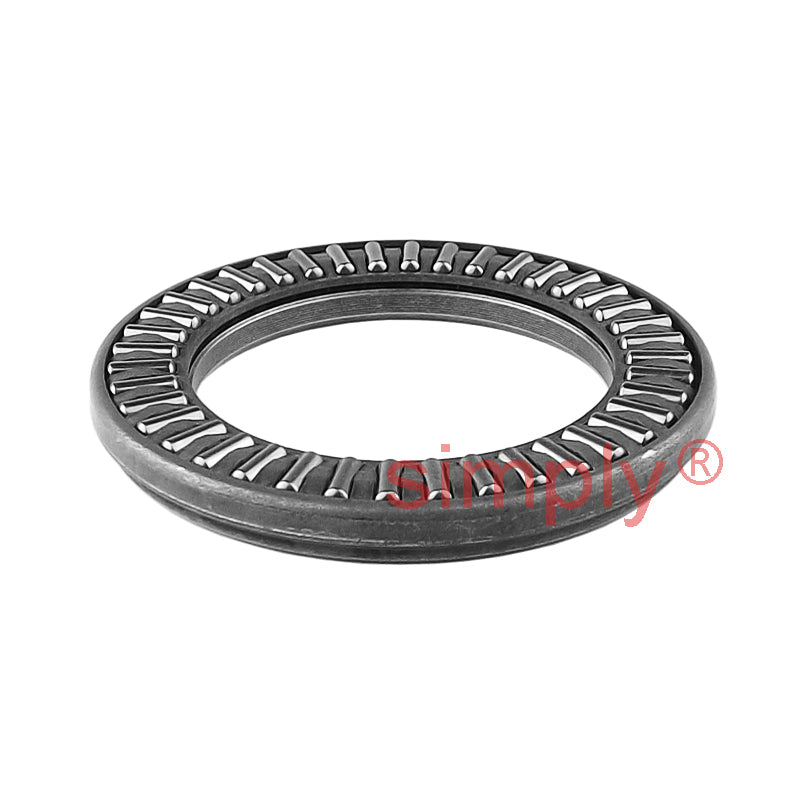

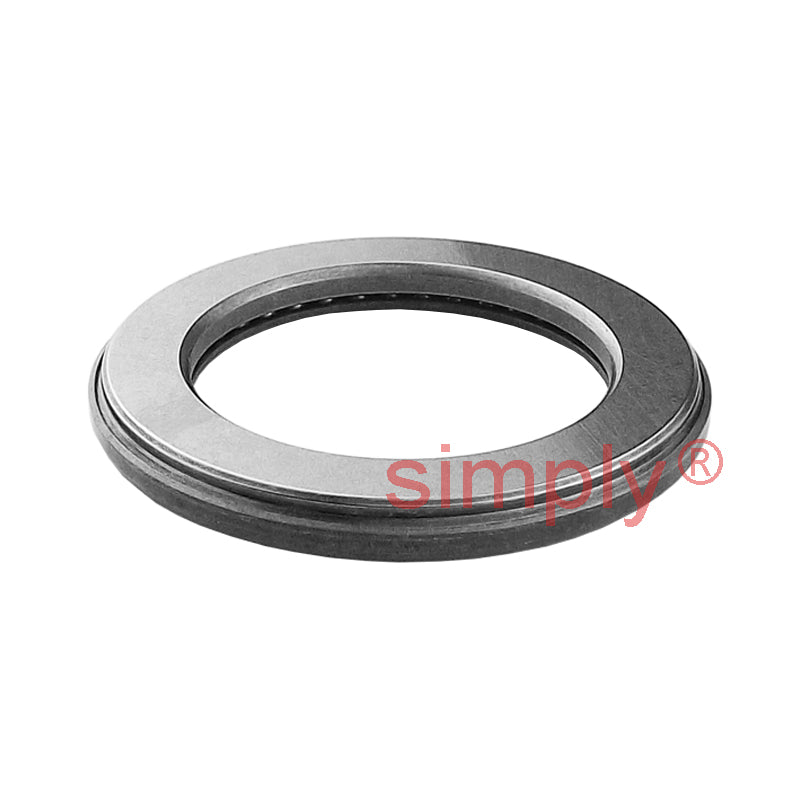

Major Brand AX41730 Thick Needle Roller Thrust Bearing 17x30x4mm Allow 2-3 Days
- Regular price
- €51,50 ex VAT
- Sale price
- €51,50
- Regular price
-
Not in stock
Quantity Price Breaks
10
€45,84
19
€43,26
29
€42,75
39
€42,23
49
€41,72
74
€41,20
99
€38,63
199
€38,11
249
€37,60
499
€37,08
999
€36,05
SKU:
AX41730-MB
Major Brand AX41730 Thick Needle Roller Thrust Bearing 17x30x4mm Allow 2-3 Days
- Regular price
- €51,50 ex VAT
- Sale price
- €51,50
- Regular price
-
Description
AX Thick Series Needle Roller Thrust Bearings: Needle roller and cage thrust assemblies are a low profile high load thrust bearing assembly and can be used with the CP series thrust washers which are supplied separately. They are made up of a uniform cage which reliably guides a large quantity of needle rollers, the rollers are slightly relieved towards their outer edge to enable uniform load distribution and prevents any edge damage occurrence. |
Technical
| Dc1 | = | 17mm |
| D | = | 30mm |
| B1 | = | 4mm |
| Eb | = | 19mm |
| Ea | = | 26.6mm |
| Dynamic load | = | 7.8 kN |
| Static load | = | 22 kN |
| Speed rating in oil | = | 10500 rpm |
| Mass | = | 0.01 kg |
