SKU: AX3.5715-MB

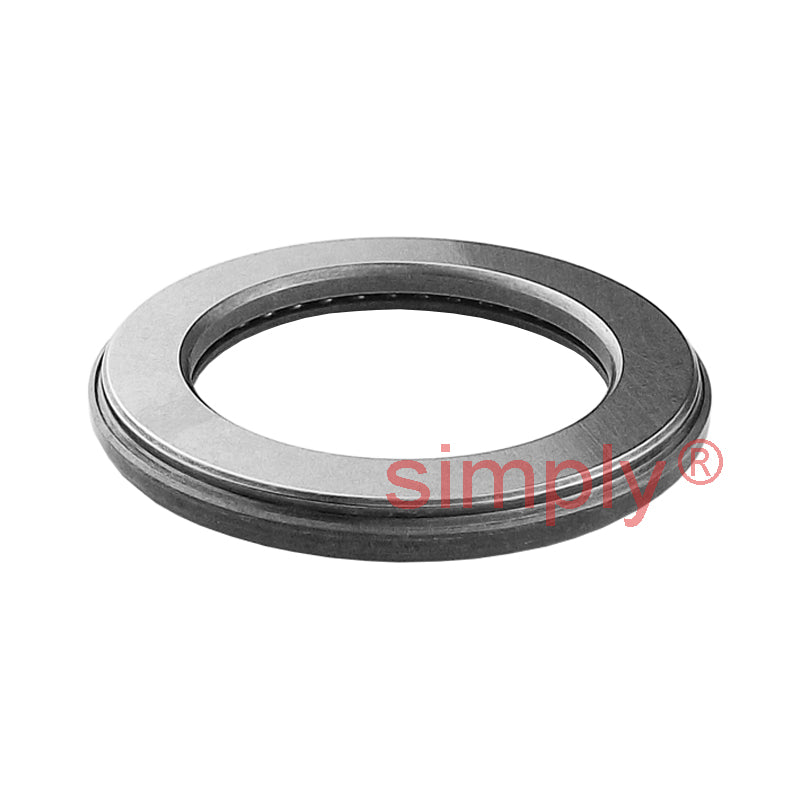

Major Brand AX3.5715 Thick Needle Roller Thrust Bearing 7x15x3.5mm Allow 2-3 Days
- Regular price
- €50,02 ex VAT
- Sale price
- €50,02
- Regular price
-
Not in stock
Quantity Price Breaks
10
€44,52
19
€42,02
29
€41,52
39
€41,02
49
€40,52
74
€40,02
99
€37,52
199
€37,01
249
€36,51
499
€36,01
999
€35,01
SKU:
AX3.5715-MB
Major Brand AX3.5715 Thick Needle Roller Thrust Bearing 7x15x3.5mm Allow 2-3 Days
- Regular price
- €50,02 ex VAT
- Sale price
- €50,02
- Regular price
-
Description

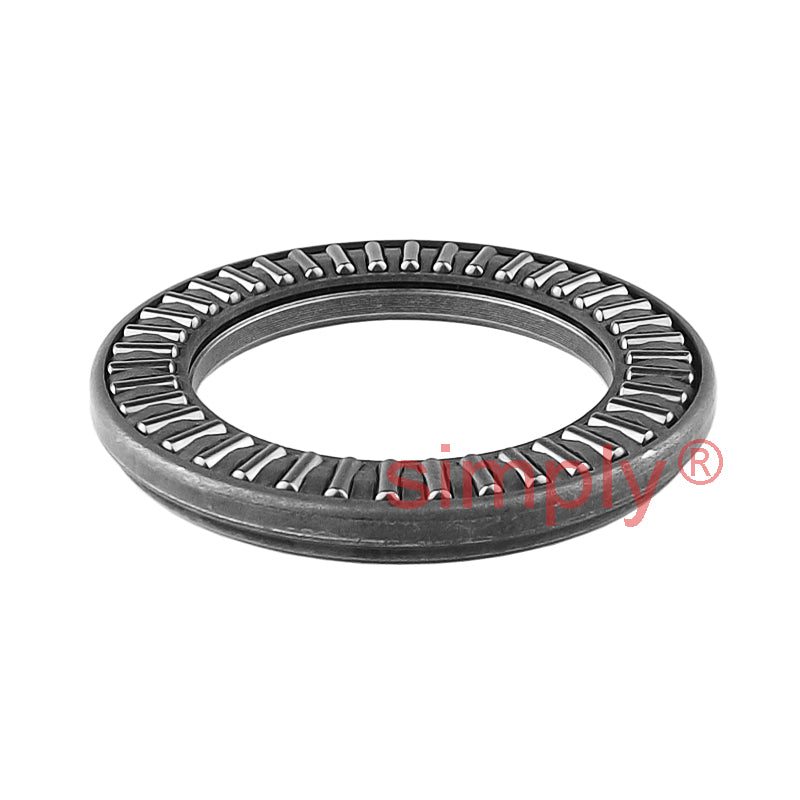

AX Thick Series Needle Roller Thrust Bearings: Needle roller and cage thrust assemblies are a low profile high load thrust bearing assembly and can be used with the CP series thrust washers which are supplied separately. They are made up of a uniform cage which reliably guides a large quantity of needle rollers, the rollers are slightly relieved towards their outer edge to enable uniform load distribution and prevents any edge damage occurrence. |
Technical
| Dc1 | = | 7mm |
| D | = | 15mm |
| B1 | = | 3.5mm |
| Eb | = | 8.3mm |
| Ea | = | 12.9mm |
| Dynamic load | = | 3.55 kN |
| Static load | = | 7.6 kN |
| Speed rating in oil | = | 22000 rpm |
| Mass | = | 0.003 kg |
Downloads
Reviews
