SKU: AS3552-EU

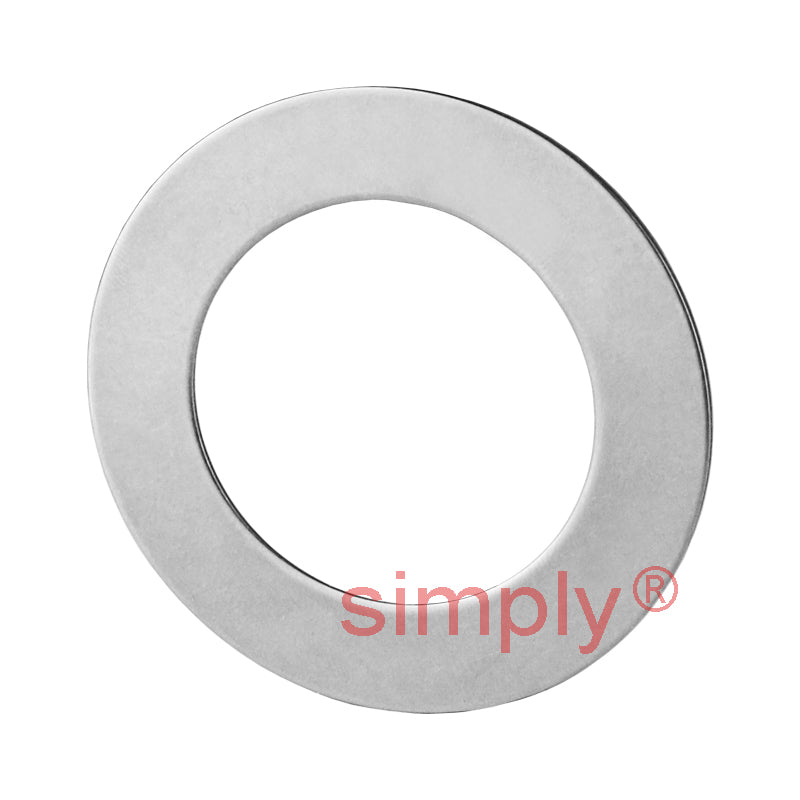

AS3552 Budget Thrust Washer Series AS 35x52x1mm
- Regular price
- €1,12 ex VAT
- Sale price
- €1,12
- Regular price
-
In stock
Quantity Price Breaks
5+
€0,78
10+
€0,67
20+
€0,62
50+
€0,56
100+
€0,45
500+
€0,39
1000+
€0,34
SKU:
AS3552-EU
AS3552 Budget Thrust Washer Series AS 35x52x1mm
- Regular price
- €1,12 ex VAT
- Sale price
- €1,12
- Regular price
-
Description
|
Budget AS Series Thrust Washers: Made of spring steel (equivalent to AISI 1074 / SAE 5165) these thrust washers are hardened and polished and are only 1mm thick. These washers enable a very economic bearing arrangements and serve as both shaft and housing raceways having moderate stiffness and running accuracy. Benefits: Economical in the use of space, accurately machined and polished, hardened spring steel, moderate running accuracy and stiffness, inexpensive. |
Technical
| d | = | 35mm |
| d1 | = | 52mm |
| D | = | 52mm |
| D1 | = | 37mm |
| B | = | 1mm |
| r1r2 | = | 0.6mm |
| Material | = | Spring Steel (AISI 1074 / SAE 5165) |
| Weight | = | 29 g |
