• Major Branded AOH24180 Withdrawal Sleeve for 380mm shaft
1 1

SKU: AOH24180-MB

Major Branded AOH24180 Withdrawal Sleeve for 380mm shaft

Major Branded AOH24180 Withdrawal Sleeve for 380mm shaft
€6.659,67 ex VAT
€6.659,67 ex VAT
Sale Sold out

In stock

Price Break
10+ €5.061,04
19+ €4.776,71
29+ €4.719,84
39+ €4.662,98
49+ €4.606,11
74+ €4.549,25
99+ €4.264,92
199+ €4.208,05
249+ €4.151,19
499+ €4.094,32
999+ €3.980,59

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Withdrawal Sleeves: Can be used to mount bearings with a tapered bore onto a cylindrical seating. They can be used on plain shafts allowing the bearing to be positioned as required and locked into place or on stepped shafts with a seating ring to set the bearing off a shoulder before locking it into position. Differing from adaptor sleeves, they are pushed into the bearing by a locknut on the threaded shaft, they then permit a larger locknut to be used to withdraw the sleeve from within the bearing for ease of dismantling
Benefits: Re-useable, adjustable, positive location, easy to dismount
Brand / Quality:
Major Brand - High Quality
Inside Diameter:
380mm
Outside Diameter:
400mm
Width:
278mm
Technical

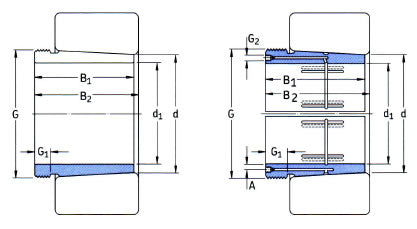

--- Dimensions
d1 380mm
d 400mm
B1 278mm
B2 298mm
G Thread 420x5mm
G1 28
G2 Gl/4
A 9mm
Weight 35 kg
--- Assembly Parts
Sleeve AOH24180
Nut HM3184
Hydraulic nut HMV84E
--- Matching Spherical Roller Bearings
Bearing No. <a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=24180K+taper>24180K</a>
