• Major Branded AOH2352G Withdrawal Sleeve for 240mm shaft
1 1

SKU: AOH2352G-MB

Major Branded AOH2352G Withdrawal Sleeve for 240mm shaft

Major Branded AOH2352G Withdrawal Sleeve for 240mm shaft
€1.399,06 ex VAT
€1.399,06 ex VAT
Sale Sold out

In stock

Price Break
10+ €1.063,22
19+ €1.003,49
29+ €991,54
39+ €979,59
49+ €967,65
74+ €955,70
99+ €895,97
199+ €884,02
249+ €872,08
499+ €860,13
999+ €836,24

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description

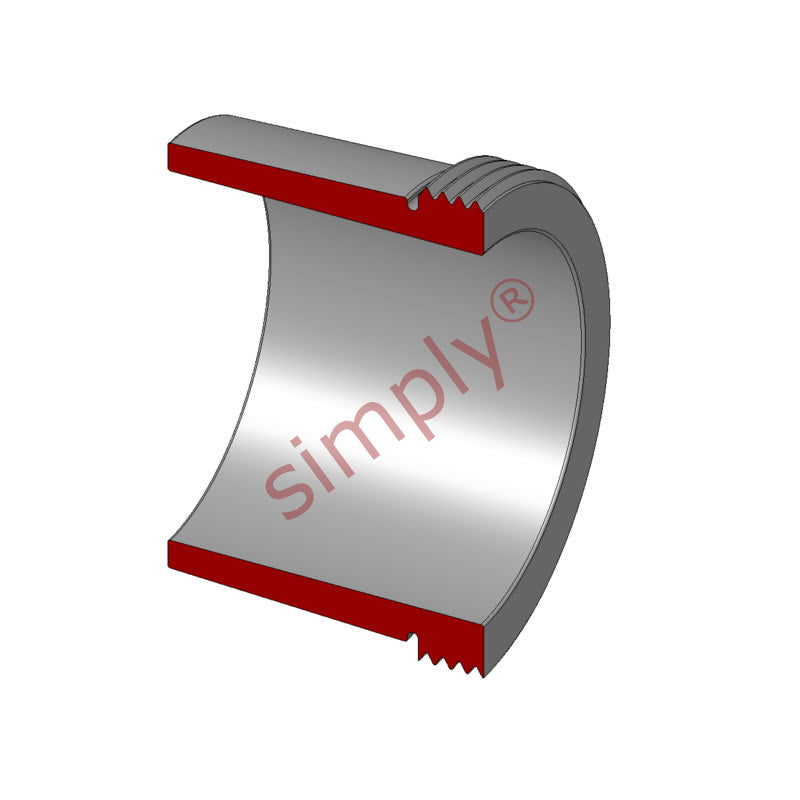

Withdrawal Sleeves: Can be used to mount bearings with a tapered bore onto a cylindrical seating. They can be used on plain shafts allowing the bearing to be positioned as required and locked into place or on stepped shafts with a seating ring to set the bearing off a shoulder before locking it into position. Differing from adaptor sleeves, they are pushed into the bearing by a locknut on the threaded shaft, they then permit a larger locknut to be used to withdraw the sleeve from within the bearing for ease of dismantling
Benefits: Re-useable, adjustable, positive location, easy to dismount
Brand / Quality:
Major Brand - High Quality
Inside Diameter:
240mm
Outside Diameter:
260mm
Width:
205mm
Technical
--- Dimensions
d1 240mm
d 260mm
B1 205mm
B2 213mm
G Thread 280x4mm
G1 30
G2 Gl/4
A 9mm
Weight 19 kg
--- Assembly Parts
Sleeve AOH2352G
Nut HM3056
Hydraulic nut HMV56E
--- Matching Spherical Roller Bearings
Bearing No. <a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=23252K+taper>23252K</a>
Bearing No. <a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=22352K+taper>22352K</a>
