• Major Branded AHX310 Withdrawal Sleeve for 45mm shaft
1 1

SKU: AHX310-MB

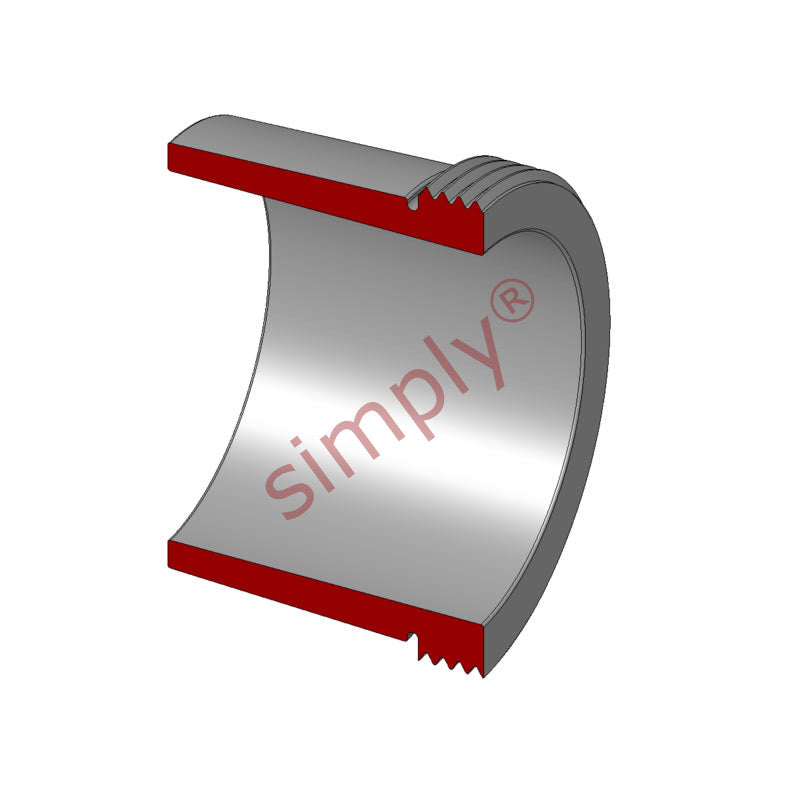

Major Branded AHX310 Withdrawal Sleeve for 45mm shaft

Major Branded AHX310 Withdrawal Sleeve for 45mm shaft
€70,27 ex VAT
€70,27 ex VAT
Sale Sold out

In stock

Price Break
10+ €53,40
19+ €50,40
29+ €49,80
39+ €49,20
49+ €48,60
74+ €48,00
99+ €45,00
199+ €44,40
249+ €43,80
499+ €43,20
999+ €42,00

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Withdrawal Sleeves: Can be used to mount bearings with a tapered bore onto a cylindrical seating. They can be used on plain shafts allowing the bearing to be positioned as required and locked into place or on stepped shafts with a seating ring to set the bearing off a shoulder before locking it into position. Differing from adaptor sleeves, they are pushed into the bearing by a locknut on the threaded shaft, they then permit a larger locknut to be used to withdraw the sleeve from within the bearing for ease of dismantling
Benefits: Re-useable, adjustable, positive location, easy to dismount
Brand / Quality:
Major Brand - High Quality
Inside Diameter:
45mm
Outside Diameter:
50mm
Width:
35mm
Technical
--- Dimensions
d1 45mm
d 50mm
B1 35mm
B2 38mm
G Thread 55x2mm
G1 7mm
Weight 0.13 kg
--- Assembly Parts
Sleeve AHX310
Nut KM11
Hydraulic nut HMV11E
--- Matching Self Aligning Bearings
Bearing No. <a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=2210K+taper>2210K</a>
Bearing No. <a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=1310K+taper>1310K</a>
--- Matching Spherical Roller Bearings
Bearing No. <a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=22210K+taper>22210K</a>
Bearing No. <a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=21310K+taper>21310K</a>
--- Matching Carb Toroidal Bearings
Bearing No. <a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=C2210KTN9+taper>C2210KTN9</a>
Bearing No. <a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=C2210KV+taper>C2210KV</a>
