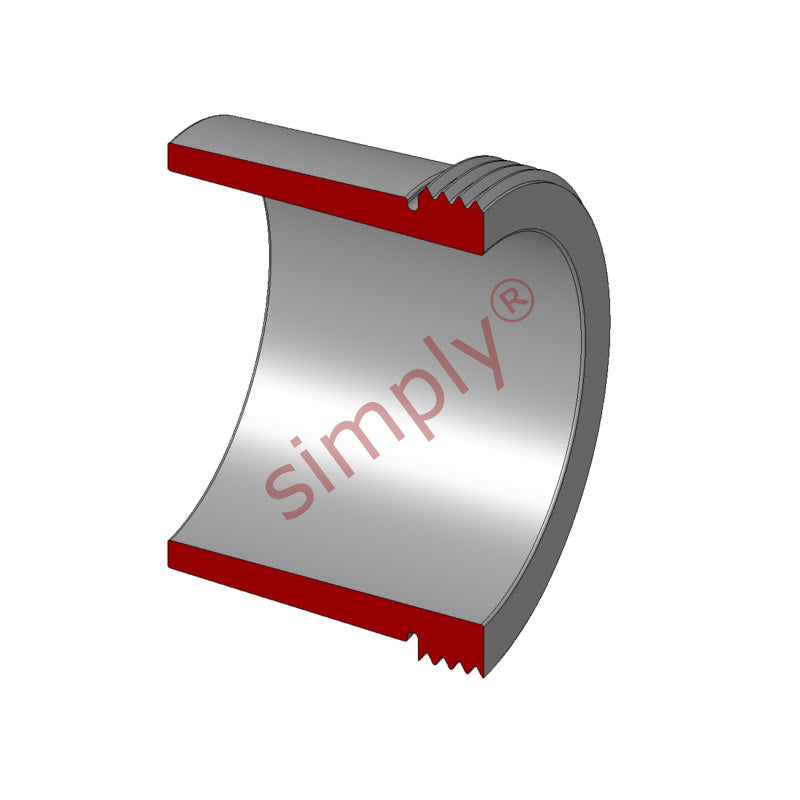

• Major Branded AH3136G Withdrawal Sleeve for 170mm shaft
1 1

SKU: AH3136G-MB

Major Branded AH3136G Withdrawal Sleeve for 170mm shaft

Major Branded AH3136G Withdrawal Sleeve for 170mm shaft
€583,52 ex VAT
€583,52 ex VAT
Sale Sold out

In stock

Price Break
10+ €443,45
19+ €418,54
29+ €413,56
39+ €408,57
49+ €403,59
74+ €398,61
99+ €373,69
199+ €368,71
249+ €363,73
499+ €358,75
999+ €348,78

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Withdrawal Sleeves: Can be used to mount bearings with a tapered bore onto a cylindrical seating. They can be used on plain shafts allowing the bearing to be positioned as required and locked into place or on stepped shafts with a seating ring to set the bearing off a shoulder before locking it into position. Differing from adaptor sleeves, they are pushed into the bearing by a locknut on the threaded shaft, they then permit a larger locknut to be used to withdraw the sleeve from within the bearing for ease of dismantling
Benefits: Re-useable, adjustable, positive location, easy to dismount
Brand / Quality:
Major Brand - High Quality
Inside Diameter:
170mm
Outside Diameter:
180mm
Width:
116mm
Technical
--- Dimensions
d1 170mm
d 180mm
B1 116mm
B2 122mm
G Thread 190x3mm
G1 19mm
Weight 3.9 kg

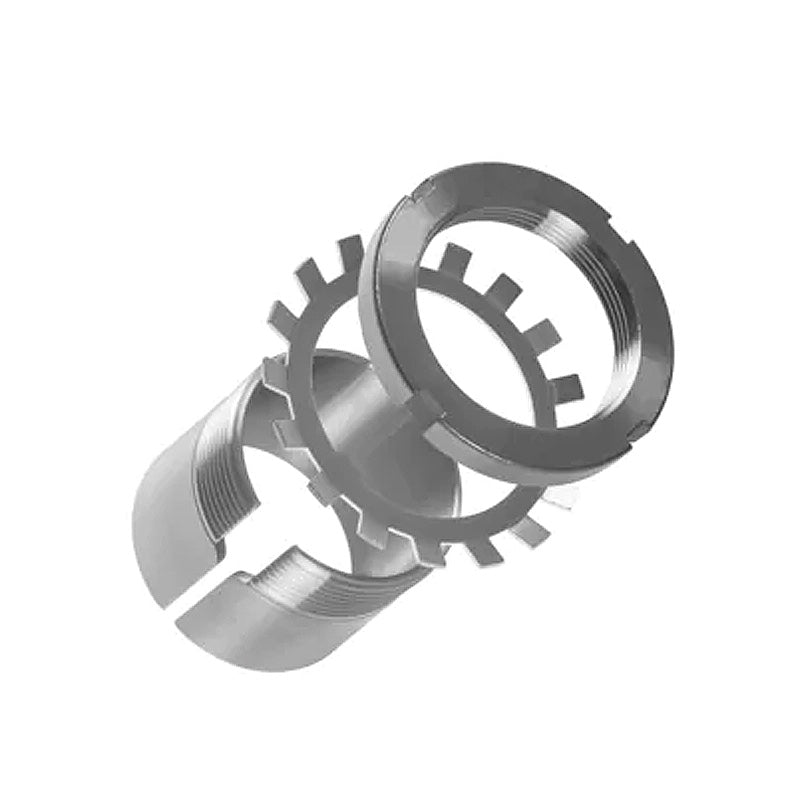

--- Assembly Parts
Sleeve AH3136G
Nut KM38
Hydraulic nut HMV38E
--- Matching Spherical Roller Bearings
Bearing No. <a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=23136K+taper>23136K</a>
--- Matching Carb Toroidal Bearings
Bearing No. <a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=C3136K+taper>C3136K</a>
