• Major Branded AH24136 Withdrawal Sleeve for 170mm shaft
1 1

SKU: AH24136-MB

Major Branded AH24136 Withdrawal Sleeve for 170mm shaft

Major Branded AH24136 Withdrawal Sleeve for 170mm shaft
€562,02 ex VAT
€562,02 ex VAT
Sale Sold out

In stock

Price Break
10+ €427,11
19+ €403,11
29+ €398,32
39+ €393,52
49+ €388,72
74+ €383,92
99+ €359,92
199+ €355,12
249+ €350,33
499+ €345,53
999+ €335,93

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description

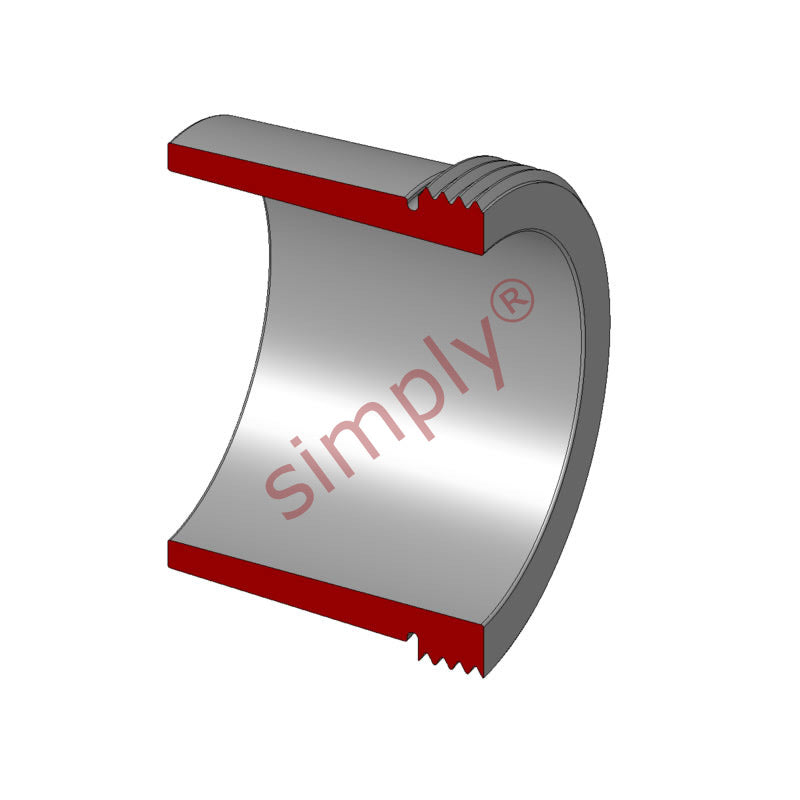

Withdrawal Sleeves: Can be used to mount bearings with a tapered bore onto a cylindrical seating. They can be used on plain shafts allowing the bearing to be positioned as required and locked into place or on stepped shafts with a seating ring to set the bearing off a shoulder before locking it into position. Differing from adaptor sleeves, they are pushed into the bearing by a locknut on the threaded shaft, they then permit a larger locknut to be used to withdraw the sleeve from within the bearing for ease of dismantling
Benefits: Re-useable, adjustable, positive location, easy to dismount
Brand / Quality:
Major Brand - High Quality
Inside Diameter:
170mm
Outside Diameter:
180mm
Width:
134mm
Technical
--- Dimensions
d1 170mm
d 180mm
B1 134mm
B2 145mm
G Thread 190x3mm
G1 16mm
Weight 3.75 kg

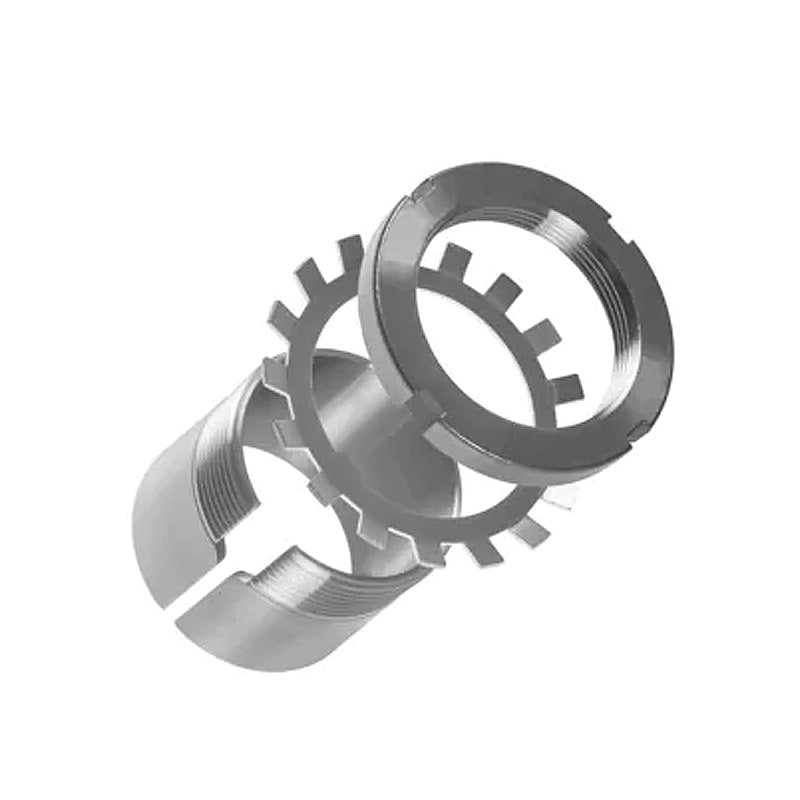

--- Assembly Parts
Sleeve AH24136
Nut KM38
Hydraulic nut HMV38E
--- Matching Spherical Roller Bearings
Bearing No. <a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=24136K+taper>24136K</a>
--- Matching Carb Toroidal Bearings
Bearing No. <a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=C4136K30V+taper>C4136K30V</a>
