SKU: AH24030-MB

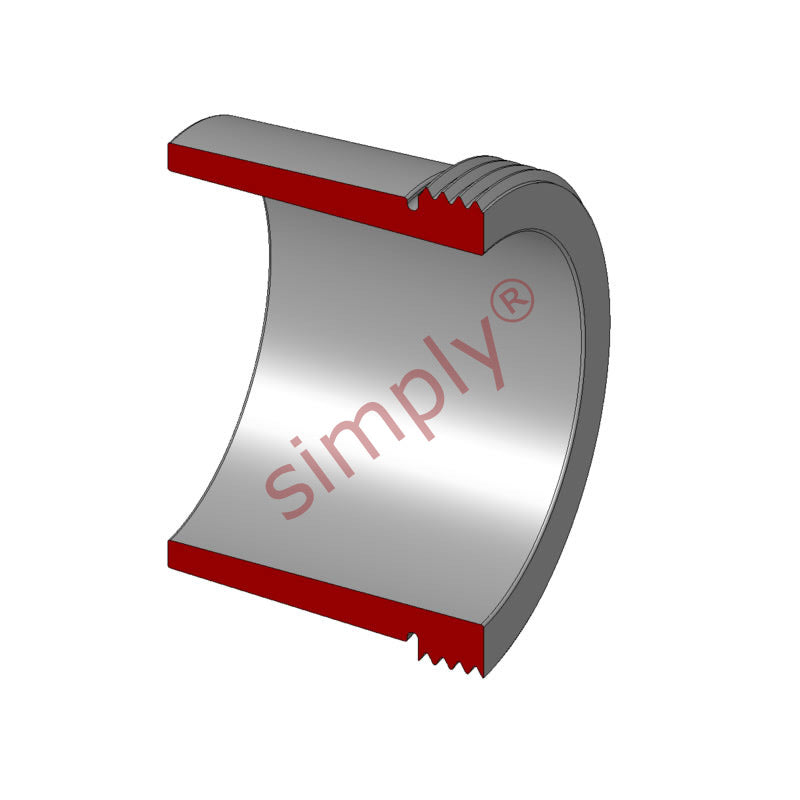

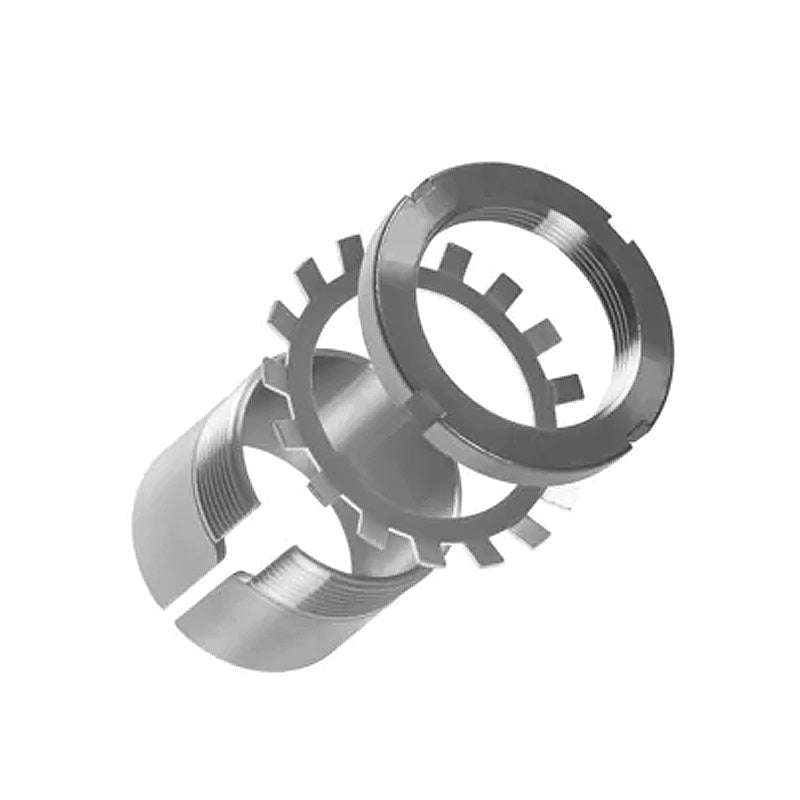

Major Branded AH24030 Withdrawal Sleeve for 145mm shaft
- Regular price
- €421,14 ex VAT
- Sale price
- €421,14
- Regular price
-
ex VAT
Not in stock
Quantity Price Breaks
10
€374,81
19
€353,76
29
€349,55
39
€345,33
49
€341,12
74
€336,91
99
€315,86
199
€311,64
249
€307,43
499
€303,22
999
€294,80
Description
|
Withdrawal Sleeves: Can be used to mount bearings with a tapered bore onto a cylindrical seating. They can be used on plain shafts allowing the bearing to be positioned as required and locked into place or on stepped shafts with a seating ring to set the bearing off a shoulder before locking it into position. Differing from adaptor sleeves, they are pushed into the bearing by a locknut on the threaded shaft, they then permit a larger locknut to be used to withdraw the sleeve from within the bearing for ease of dismantling Benefits: Re-useable, adjustable, positive location, easy to dismount |
Technical
| --- | = | Dimensions |
| d1 | = | 145mm |
| d | = | 150mm |
| B1 | = | 90mm |
| B2 | = | 101mm |
| G | = | Thread 155x3mm |
| G1 | = | 15mm |
| Weight | = | 1.05 kg |
| --- | = | Assembly Parts |
| Sleeve | = | AH24030 |
| Nut | = | KM31 |
| Hydraulic nut | = | HMV31E |
| --- | = | Matching Spherical Roller Bearings |
| Bearing No. | = | < |
| a href=advanced_search_result.php?sort=2a& | = | search_in_description=1& |
| keywords=24030K+taper> | = | 24030K< |
| /a> | = | |
| --- | = | Matching Carb Toroidal Bearings |
| Bearing No. | = | < |
| a href=advanced_search_result.php?sort=2a& | = | search_in_description=1& |
| keywords=C4030K30V+taper> | = | C4030K30V< |
| /a> | = |
