SKU: AGR-16-25-FLEX

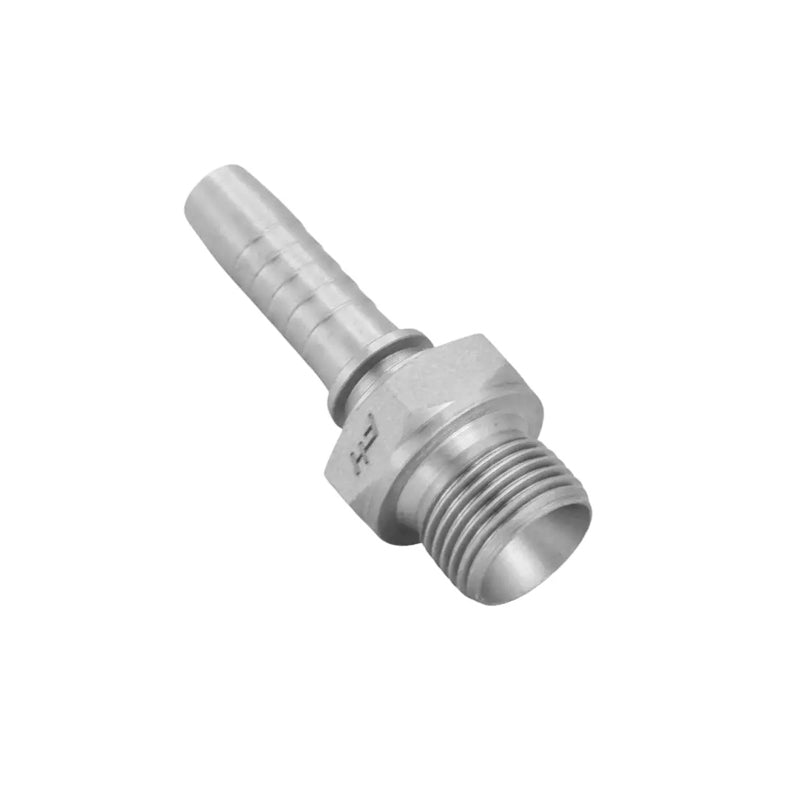

FLEXEQUIP/VOSS 1 inch BSP Male Two Piece Hose Fitting with 60 Degree Cone - Allow 2-3 Days
- Regular price
- €12,51 ex VAT
- Sale price
- €12,51
- Regular price
-
Quantity Price Breaks
FLEXEQUIP/VOSS 1 inch BSP Male Two Piece Hose Fitting with 60 Degree Cone - Allow 2-3 Days
- Regular price
- €12,51 ex VAT
- Sale price
- €12,51
- Regular price
-
Description
FLEXEQUIP/VOSS Male Two Piece Hose Fitting with 60 Degree Cone: These hose fittings are versatile and durable parallel male hose fitting, commonly used in the UK and Ireland for medium to high-pressure hydraulic applications. Available with either BSP or NPT thread, this fitting ensures a reliable, leak-free connection. BSP versions conform to ISO 12151-6 (ISO 8434-6) standards, while NPT fittings feature an NPTF tapered thread and meet SAE J 516 specifications. Designed for demanding environments, this fitting provides optimal performance and is ideal for a wide range of hydraulic systems.
Benefits: High compatibility, leek-free connections, durability under pressure

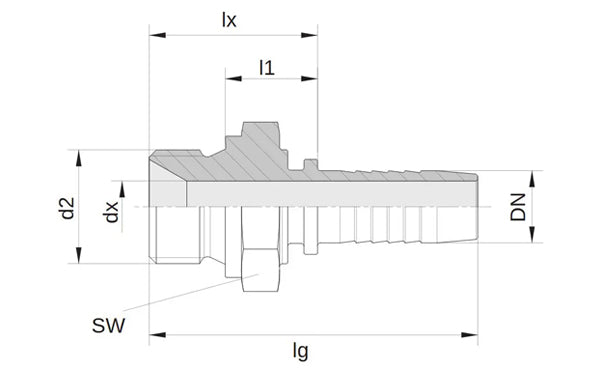

Technical
| Hose Bore | = | 1 inch |
| Thread (d2) | = | 1 inch |
| DN Size | = | 25mm |
| Total Length (lg) | = | 87mm |
| Length (lh) | = | 21mm |
| Cut Off (lx) | = | 40mm |
| Bore Size (dx) | = | 20mm |
| Nut Size (SW) | = | 41mm |
| Angle | = | * Straight degrees |
| Cone Angle | = | 60 degrees |
| Weight | = | 0.282 kg |
