SKU: 8T2/600

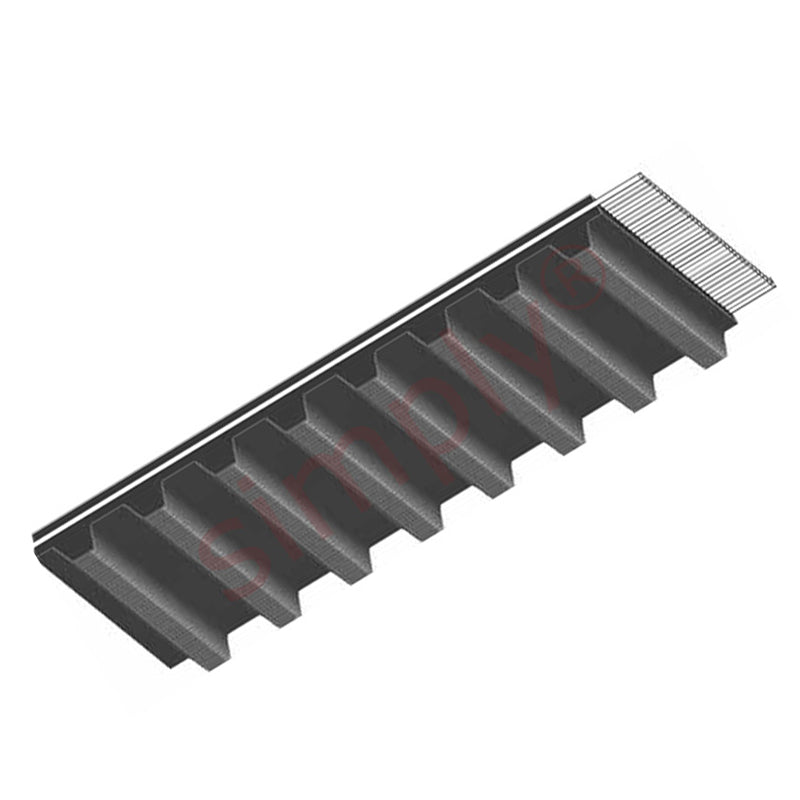

8T2/600 ContiTech Synchroflex Toothed Belt 8mm Wide 2mm Pitch 300 Teeth
- Regular price
- €25,64 ex VAT
- Sale price
- €25,64
- Regular price
-
Quantity Price Breaks
8T2/600 ContiTech Synchroflex Toothed Belt 8mm Wide 2mm Pitch 300 Teeth
- Regular price
- €25,64 ex VAT
- Sale price
- €25,64
- Regular price
-
Description
Synchronous Drive Belts: Power transmission belts have become a valuable element of synchronous transmission throughout the entire field of drive technology. They enable purpose-made solutions to be realized effectively and economically.
Thanks to their high flexibility synchronous drive belts enable low-cost design, even with difficult drive system requirements such as high transmission ratios, high belt speeds, small pulley diameters and back tensioning rollers.
Benefits: Synchronised drive, Outstanding resistance to fatigue and deformation, as well as a good resistance to environmental influences, temperature extremes and ageing, are all factors which give the user high service reliability and freedom from maintenance.
Technical
| No Teeth | = | 300 |
| Width | = | 8mm |
| Tooth Pitch t | = | 2mm |
| Belt Length | = | 600mm |
| Belt Thickness h< | = | sub> |
| s< | = | /sub> |
| = | 1.1mm | |
| Tooth Height h< | = | sub> |
| t< | = | /sub> |
| = | 0.5mm | |
| Flank Angle | = | 40 deg |
| Tension member loadings | = | 86 Fadm(N) |
