SKU: 81184M.MB

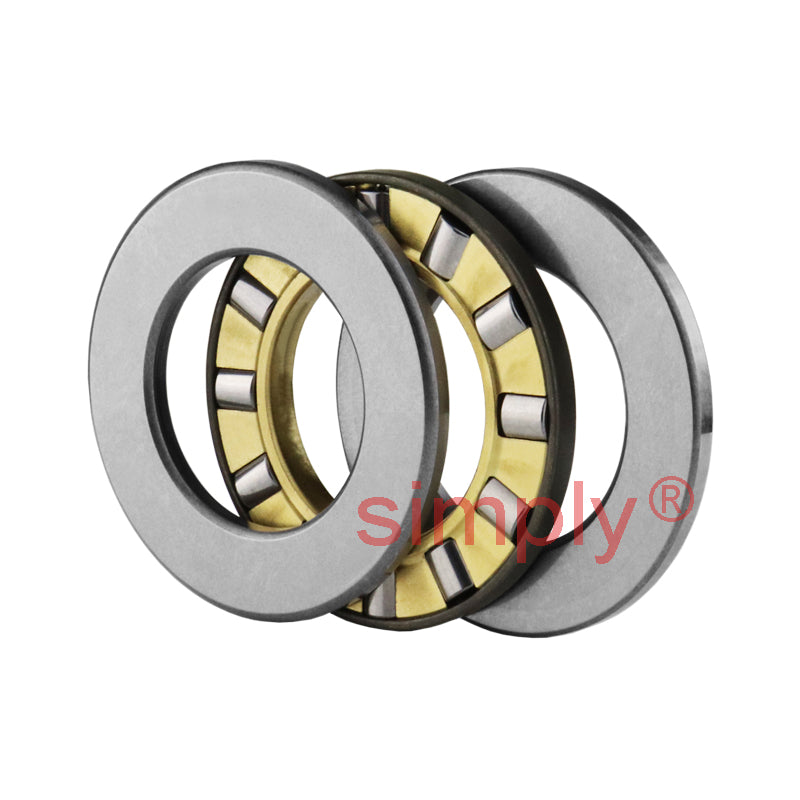

Major Brand 81184M Cylindrical Roller Thrust Bearing with Brass Cage 420x500x65mm
- Regular price
- €7.189,96 ex VAT
- Sale price
- €7.189,96
- Regular price
-
Not in stock
Quantity Price Breaks
10
€6.399,06
19
€6.039,57
29
€5.967,67
39
€5.895,77
49
€5.823,87
74
€5.751,97
99
€5.392,47
199
€5.320,57
249
€5.248,67
499
€5.176,77
999
€5.032,97
SKU:
81184M.MB
Major Brand 81184M Cylindrical Roller Thrust Bearing with Brass Cage 420x500x65mm
- Regular price
- €7.189,96 ex VAT
- Sale price
- €7.189,96
- Regular price
-
Description
|
Cylindrical Roller Thrust Bearings: Ideally suited to arrangements that require support for heavy radial loads. They are relatively insensitive to shock loads in operation and are reasonably stiff in operation requiring little axial space. The cylindrical surface of the rollers are slightly relieved towards the inner end to relieve / eliminate edge stresses. They are separable by design to facilitate ease of mounting and assembly. |
Technical
| d | = | 420mm |
| D | = | 500mm |
| H | = | 65mm |
| Dynamic load C | = | 980 kN |
| Static load Co | = | 5850 kN |
| Fatigue load limit Pu | = | 400 kN |
| Min load factor A | = | 2.7 |
| Reference speed | = | 340 rpm |
| Limiting speed | = | 700 rpm |
| Cage reference | = | K81184M |
| Weight | = | 24 kg |
