SKU: 81152M.MB

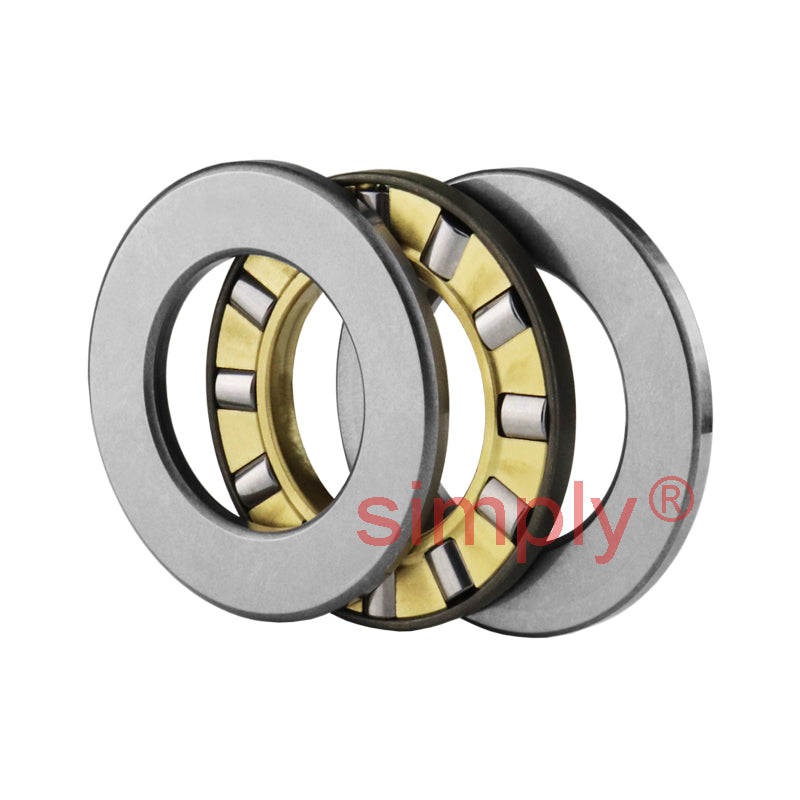

Major Brand 81152M Cylindrical Roller Thrust Bearing with Brass Cage 260x320x45mm
- Regular price
- €1.638,03 ex VAT
- Sale price
- €1.638,03
- Regular price
-
Not in stock
Quantity Price Breaks
10
€1.457,85
19
€1.375,95
29
€1.359,56
39
€1.343,18
49
€1.326,80
74
€1.310,42
99
€1.228,52
199
€1.212,14
249
€1.195,76
499
€1.179,38
999
€1.146,62
SKU:
81152M.MB
Major Brand 81152M Cylindrical Roller Thrust Bearing with Brass Cage 260x320x45mm
- Regular price
- €1.638,03 ex VAT
- Sale price
- €1.638,03
- Regular price
-
Description
|
Cylindrical Roller Thrust Bearings: Ideally suited to arrangements that require support for heavy radial loads. They are relatively insensitive to shock loads in operation and are reasonably stiff in operation requiring little axial space. The cylindrical surface of the rollers are slightly relieved towards the inner end to relieve / eliminate edge stresses. They are separable by design to facilitate ease of mounting and assembly. |
Technical
| d | = | 260mm |
| D | = | 320mm |
| H | = | 45mm |
| Dynamic load C | = | 490 kN |
| Static load Co | = | 2600 kN |
| Fatigue load limit Pu | = | 200 kN |
| Min load factor A | = | 0.54 |
| Reference speed | = | 530 rpm |
| Limiting speed | = | 1100 rpm |
| Cage reference | = | K81152M |
| Weight | = | 7.85 kg |
