SKU: 8016

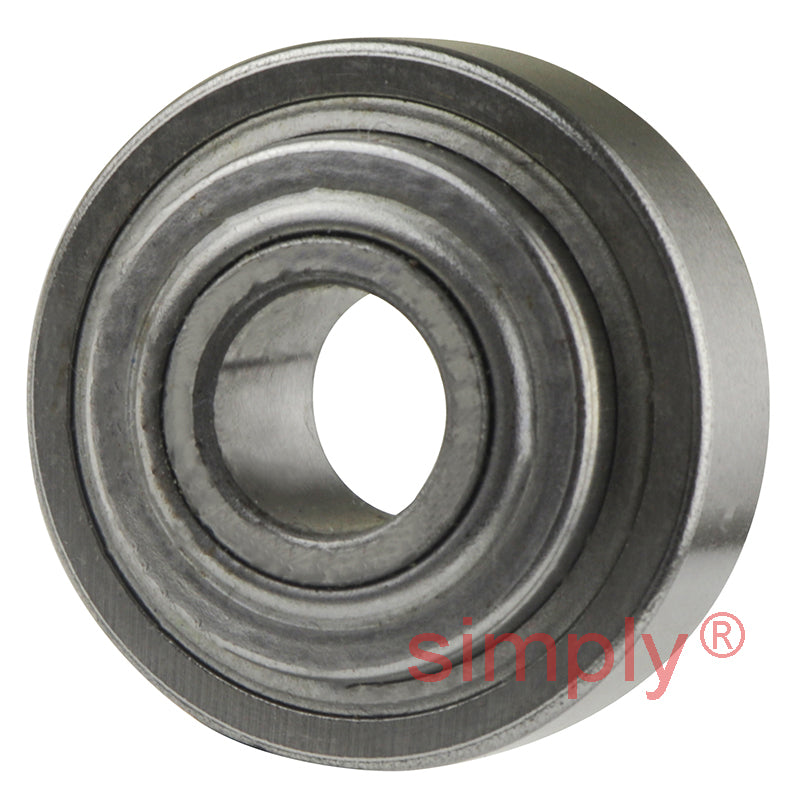

8016 Deep Groove Ball Bearing with Extended Inner Ring Felt Front Seal No Back Seal 16x35x12.7mm
- Regular price
- €52,18 ex VAT
- Sale price
- €52,18
- Regular price
-
Not in stock
Quantity Price Breaks
10
€46,44
19
€43,83
29
€43,31
39
€42,79
49
€42,27
74
€41,74
99
€39,14
199
€38,61
249
€38,09
499
€37,57
999
€36,53
SKU:
8016
8016 Deep Groove Ball Bearing with Extended Inner Ring Felt Front Seal No Back Seal 16x35x12.7mm
- Regular price
- €52,18 ex VAT
- Sale price
- €52,18
- Regular price
-
Description
|
Specialist Ball bearings: These bearings consist of chrome steel ball bearings and raceways with an extended inner raceways, additionally the inner raceway is recessed on the back of the bearing. Please refer to the technical tab for dimensions. Benefits: Felt / Metal shielded on the front, extended inner race |

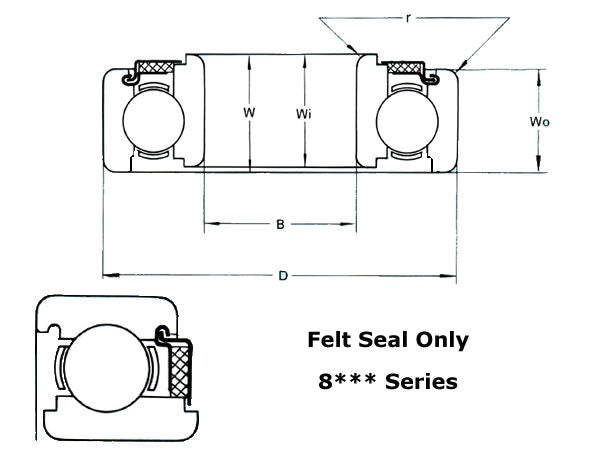

Technical
| B | = | 16mm = 0.6299 inch |
| D | = | 35mm = 1.378 inch |
| W | = | 12.7mm = 0.5 inch |
| Tolerance +0.0000 to minus | = | 0.0003 inch |
| Wo | = | 0.433 inch |
| Wi | = | 0.48 inch |
| r | = | 0.025 inch |
| No. of balls | = | 8 |
| Ball diameter | = | 15/64 inch |
| Static load | = | 600 kN |
| Dynamic load | = | 354 kN |
| Weight | = | 0.04 kg |
