SKU: 80-3-SYN-NO58-RENOLD
Renold Synergy 80-3-NO58 ANSI / AS Triplex Chain Cottered Connecting Link 1 inch Pitch
- Regular price
- €104,25 ex VAT
- Sale price
- €104,25
- Regular price
-
Not in stock
Quantity Price Breaks
2
€92,78
5
€87,57
10
€86,53
29
€85,49
49
€84,44
75
€83,40
100
€78,19
200
€77,15
250
€76,10
500
€75,06
1000
€72,98
SKU:
80-3-SYN-NO58-RENOLD
Renold Synergy 80-3-NO58 ANSI / AS Triplex Chain Cottered Connecting Link 1 inch Pitch
- Regular price
- €104,25 ex VAT
- Sale price
- €104,25
- Regular price
-
Description

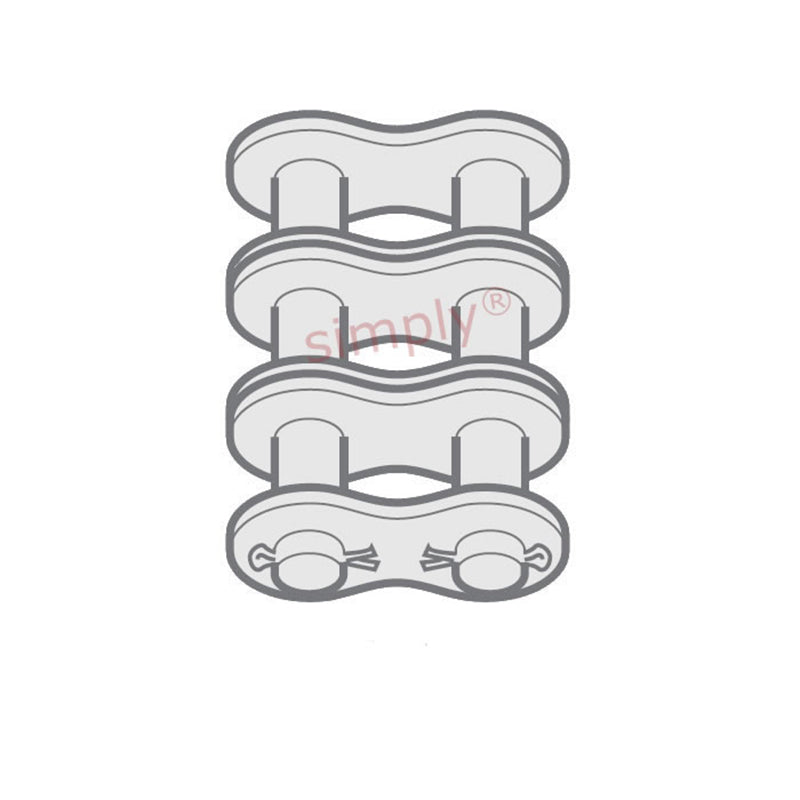

| Renold No. 58 ANSI Triplex Connecting Link: A connecting link supplied with two connecting pins riveted into the outer plate. The outer plate is a clearance fit on the connecting pins and is secured in a position by a split pin through the projecting end of each connecting pin. |
Technical
| Pitch (A) | = | 1 inch |
| Pitch (A) | = | 25.4mm |
| Inside Width min (B) | = | 15.75mm |
| Roller Diameter max (C) | = | 15.88mm |
| Plate Height max (D) | = | 24.13mm |
| Plate Width Inner max (E) | = | 3.25mm |
| Plate Width Outer max (F) | = | 3.25mm |
| Pin Diameter max (G) | = | 7.94mm |
| Pin Length max (H2) | = | 91.2mm |
| Connecting Link Extension max (J) | = | 3mm |
| Transverse Pitch nom (K) | = | 29.29mm |
| ISO606 Tensile Strength min | = | 166800 N |
| Weight | = | 0.01kg/m |
