SKU: 80-3-SD-NO11-RENOLD
Renold SD 80-3-NO11 ANSI / AS Triplex Chain Cottered Connecting Link 1 inch Pitch
- Regular price
- €24,48 ex VAT
- Sale price
- €24,48
- Regular price
-
Not in stock
Quantity Price Breaks
2
€21,79
5
€20,56
10
€20,32
29
€20,07
49
€19,83
75
€19,58
100
€18,36
200
€18,12
250
€17,87
500
€17,63
1000
€17,14
SKU:
80-3-SD-NO11-RENOLD
Renold SD 80-3-NO11 ANSI / AS Triplex Chain Cottered Connecting Link 1 inch Pitch
- Regular price
- €24,48 ex VAT
- Sale price
- €24,48
- Regular price
-
Description

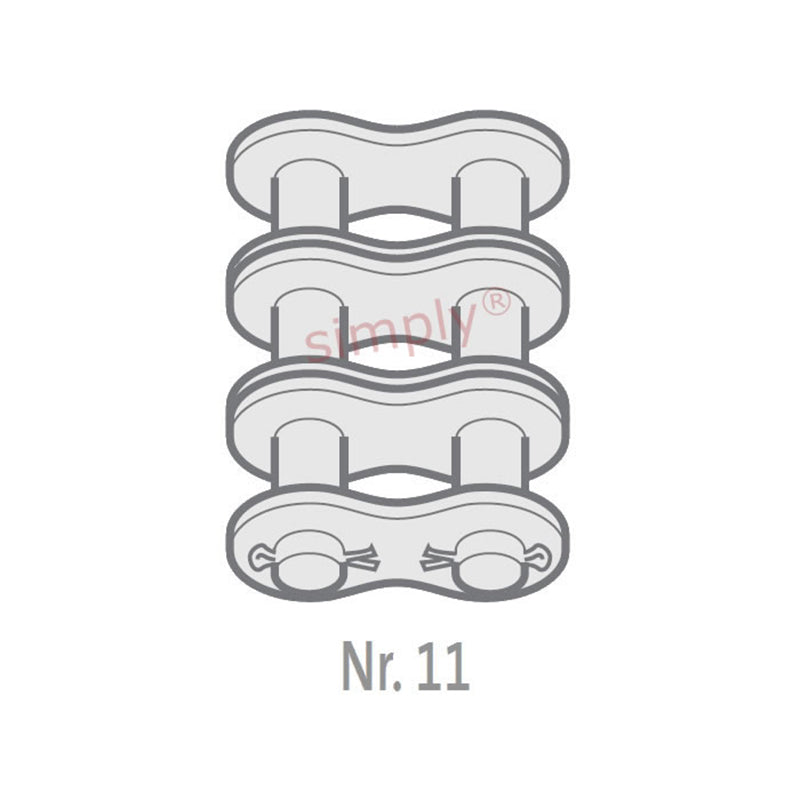

| Renold No. 11 ANSI Triplex Connecting Link: A connecting link supplied with two connecting pins riveted into the outer plate. The outer plate is a clearance fit on the connecting pins and is secured in a position by a split pin through the projecting end of each connecting pin. |
Technical
| Pitch (A) | = | 1 inch |
| Pitch (A) | = | 25.4mm |
| Inside Width min (B) | = | 15.75mm |
| Roller Diameter max (C) | = | 15.88mm |
| Plate Height max (D) | = | 24.1mm |
| Plate Width Inner max (E) | = | 3.1mm |
| Plate Width Outer max (F) | = | 3.1mm |
| Pin Diameter max (G) | = | 7.92mm |
| Pin Length max (H1) | = | 90mm |
| Connecting Link Extension max (J) | = | 6.3mm |
| ISO606 Tensile Strength min | = | 166800 N |
| Weight | = | 29.29kg/m |
