SKU: 7303.B.2RSR.TVP.MB

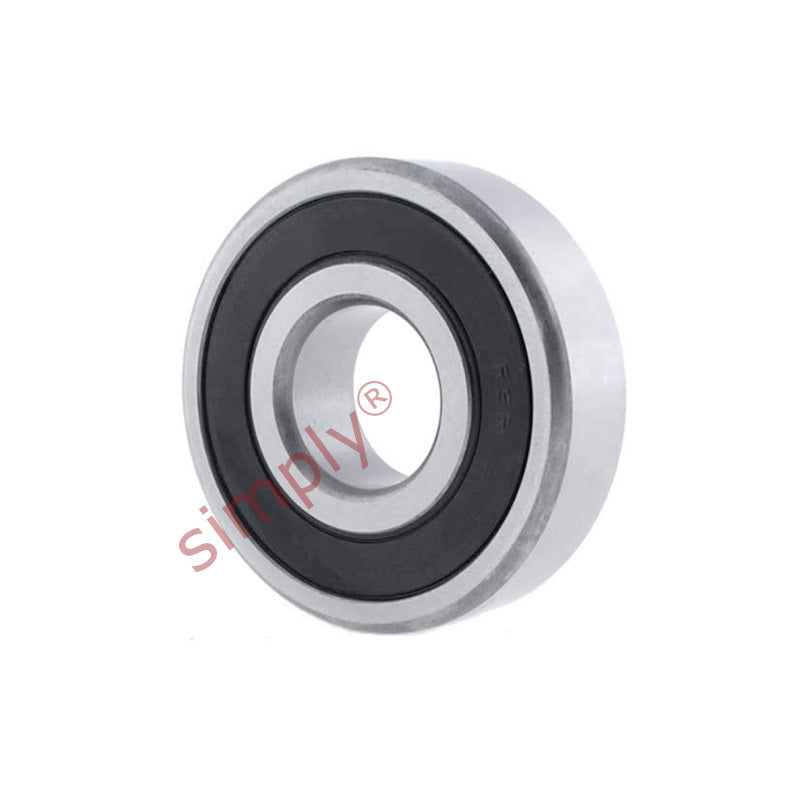

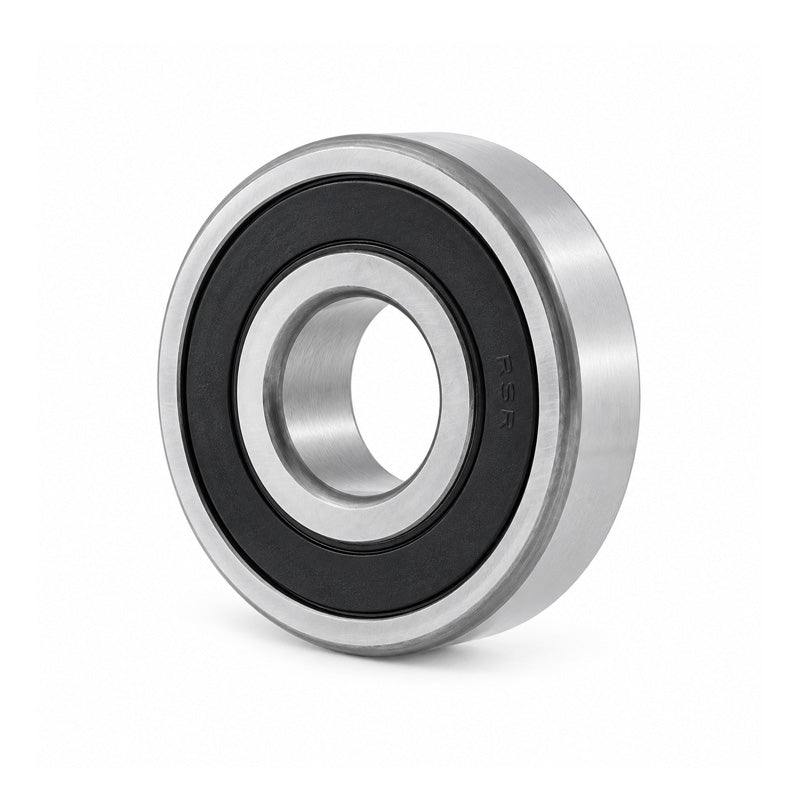

Major Branded 73032RS Rubber Sealed Single Row Angular Contact Ball Bearing 17x47x14mm
- Regular price
- €84,38 ex VAT
- Sale price
- €84,38
- Regular price
-
In stock
Quantity Price Breaks
10
€75,10
20
€70,88
30
€70,04
40
€69,19
50
€68,35
75
€67,50
100
€63,29
200
€62,44
250
€61,60
500
€60,75
1000
€59,07
SKU:
7303.B.2RSR.TVP.MB
Major Branded 73032RS Rubber Sealed Single Row Angular Contact Ball Bearing 17x47x14mm
- Regular price
- €84,38 ex VAT
- Sale price
- €84,38
- Regular price
-
Description
Rubber Sealed Single Row Angular Contact Ball Bearings: These bearings have internal raceways that are effectively opposite each other, they are designed to accommodate both axial and radial loads and when used in pairs have a tremendous load bearing capacity. Fitted with rubber seals these bearings require little or no maintenance as the pre filled lubricant is retained by the seals.
Note: Load is applied in the direction of the inner raceways largest diameter (one side will be smaller than the other in diameter), in smaller bearings this is difficult to check, in these cases the thrust is applied from the side where the bearing number markings are not present.
Benefits: Compact, rigid, accommodates tilting, radial and axial loads
Note: Load is applied in the direction of the inner raceways largest diameter (one side will be smaller than the other in diameter), in smaller bearings this is difficult to check, in these cases the thrust is applied from the side where the bearing number markings are not present.
Benefits: Compact, rigid, accommodates tilting, radial and axial loads
Technical
| d | = | 17mm |
| D | = | 47mm |
| B | = | 14mm |
| r1 | = | 1.5mm |
| r2 | = | 0.8mm |
| Dynamic load | = | 16.014 kN |
| Static load | = | 8.630 kN |
| Weight | = | 0.107 kg |
