SKU: 713-151555_PK2

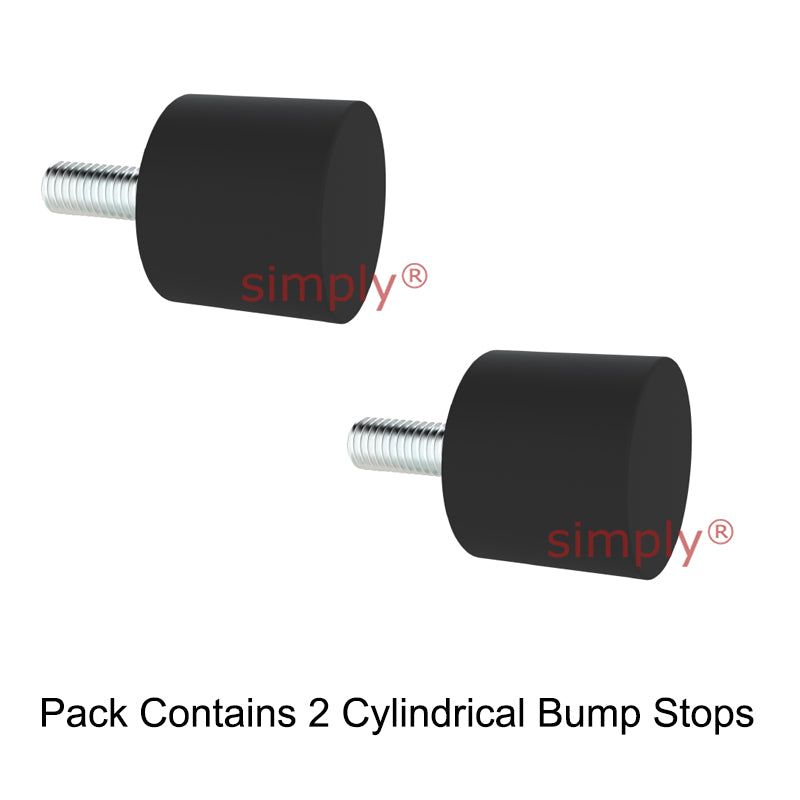

Pack of 2 High-Performance Male Rubber Cylindrical Bump Stop 15x16mm M4 Threads
- Regular price
- €5,22
- Sale price
- €5,22
- Regular price
-
Taxes included.
Not in stock
Quantity Price Breaks
4
€4,65
9
€4,38
14
€4,33
19
€4,28
49
€4,23
17
€4,18
99
€3,92
199
€3,86
249
€3,81
499
€3,76
999
€3,65
SKU:
713-151555_PK2
Pack of 2 High-Performance Male Rubber Cylindrical Bump Stop 15x16mm M4 Threads
- Regular price
- €5,22
- Sale price
- €5,22
- Regular price
-
Description
Male Flat Buffers: These male anti-vibration flat buffers represent an ideal low-cost solution to your vibration dampening requirements. They are used mainly in compression, and are available with various configurations. Constructed of Bright Zinc plated corrosion resistant steel sandwiched between natural shock absorbing rubber.
Rohs: Compliant as standard.
Benefits: Excellent anti-vibration and dampening properties, low cost, a wide range of sizes available, other materials on request.

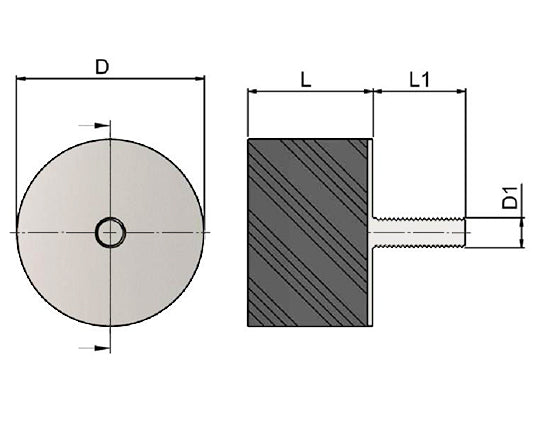

Technical
| L | = | 16mm |
| D | = | 15mm |
| D1 | = | M4 |
| L1 | = | 8mm |
| Max Compressive Load | = | 11kg |
| Deflection at Max Compressive Load | = | 1.8mm |
| Temperature Range | = | -30 deg C to +80 deg C |
| Hardness | = | 55 Shore A Hardness |
| Weight | = | 0.01 kg |
