• High-Performance Male/Female Anti-Vibration Bobbin 40x30mm M10 Threads
1 1

SKU: 711-40301055

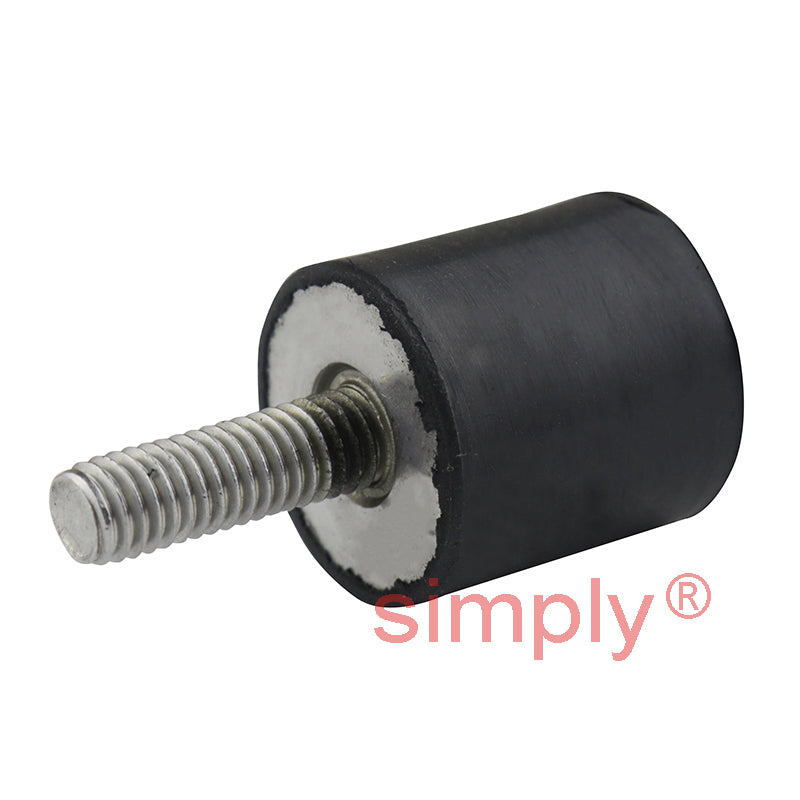

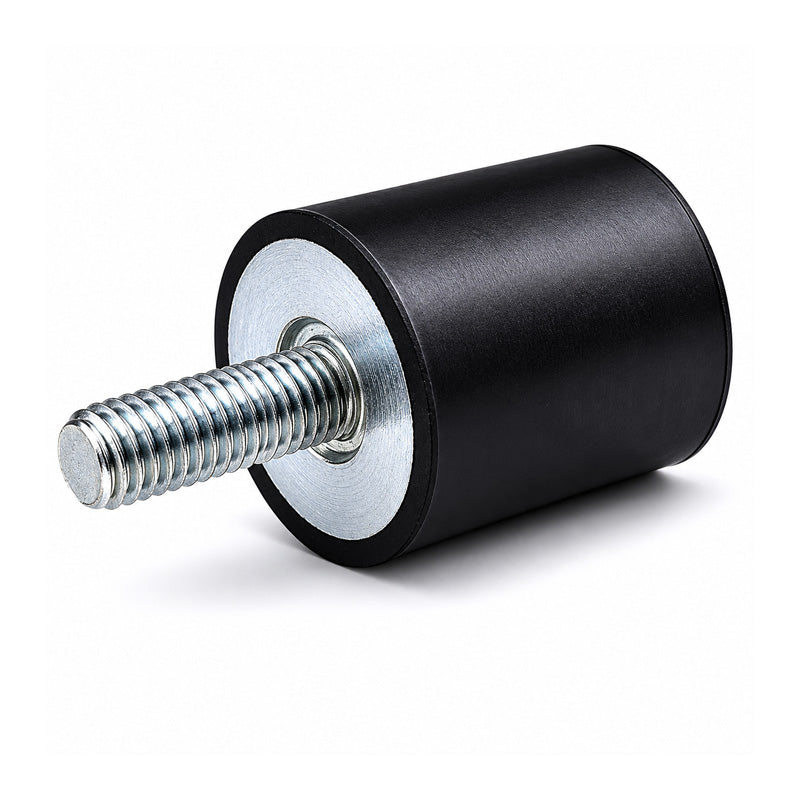

High-Performance Male/Female Anti-Vibration Bobbin 40x30mm M10 Threads

High-Performance Male/Female Anti-Vibration Bobbin 40x30mm M10 Threads
€7,80 ex VAT
€7,80 ex VAT
Sale Sold out

In stock

Price Break
4+ €5,92
9+ €5,59
14+ €5,52
19+ €5,46
49+ €5,39
74+ €5,33
99+ €4,99
199+ €4,93
249+ €4,86
499+ €4,79
999+ €4,66

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
EBTKLVJMTR
Brand / Quality:
Simply AV Mounts
Thread Size:
M10
Outside Diameter:
40mm
Length:
30mm
Material:
Bright Zinc Plated Steel
Overall Length:
58mm
Technical
D 40mm
D1 M10
D2 M10
L 30mm
L1 28mm
L2 11mm
Deflection at Max Compressive Load 76.4mm
Deflection at Max Sheer Load 3.9mm
Max Compressive Load 34.6 kg
Max Sheer Load 7.8 kg
Temperature Range -30 deg C to +80 deg C
Hardness 55 Shore A Hardness
Weight 0.01 kg
Nuts <a href="advanced_search_result.php?sort=2a&search_in_description=1&keywords=M10+steel+nut">M10 Click Here</a>
Set Screws <a href="advanced_search_result.php?sort=2a&search_in_description=1&keywords=M10+set+screw">M10 Click Here</a>
