15 Tooth 12B Simplex Idler Sprocket for 3/4 Inch Pitch Chain
15 Tooth 12B Simplex Idler Sprocket for 3/4 Inch Pitch Chain
15 Tooth 12B Simplex Idler Sprocket for 3/4 Inch Pitch Chain
15 Tooth 12B Simplex Idler Sprocket for 3/4 Inch Pitch Chain
15 Tooth 12B Simplex Idler Sprocket for 3/4 Inch Pitch Chain
15 Tooth 12B Simplex Idler Sprocket for 3/4 Inch Pitch Chain

SKU: 6SR15-IDLER

15 Tooth 12B Simplex Idler Sprocket for 3/4 Inch Pitch Chain

€13,51 ex VAT
€13,51
ex VAT
In stock

Quantity Price Breaks

5 €12,02
9 €11,35
19 €11,21
29 €11,08
49 €10,94
74 €10,81
99 €10,13
199 €10,00
249 €9,86
499 €9,73
999 €9,46
Return policy
90-Days Free Returns
Learn More
Low cost shipping
International Delivery
Learn More
15 Tooth 12B Simplex Idler Sprocket for 3/4 Inch Pitch Chain
15 Tooth 12B Simplex Idler Sprocket for 3/4 Inch Pitch Chain
15 Tooth 12B Simplex Idler Sprocket for 3/4 Inch Pitch Chain
SKU: 6SR15-IDLER

15 Tooth 12B Simplex Idler Sprocket for 3/4 Inch Pitch Chain

€13,51 ex VAT
€13,51
ex VAT

Description

Idler Sprockets: Description sprockets are manufactured to internationally recognised standards DIN8187-ISOR 606 and are produced from C45 steel UNI EN 10083-1 having a minimum strength of 600 Nmm 2. Conveniently stocked with an integral ball bearing fitted (dimension ‘D’ for bore size)."

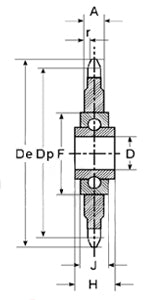

Technical

No of Teeth = 15
Pitch Chain Diameter Dp = 91.63mm
Outer Diameter De = 99.8mm
Bore Diameter = 16.2mm
Tooth Width A = 11.1mm
Hub Diameter F = 40mm
H = 18.3mm
J = 12mm
Chain Type = 12B-1
34x716 inch = Weight
0.45 kg = N/A
