SKU: 6309/C3-NACHI

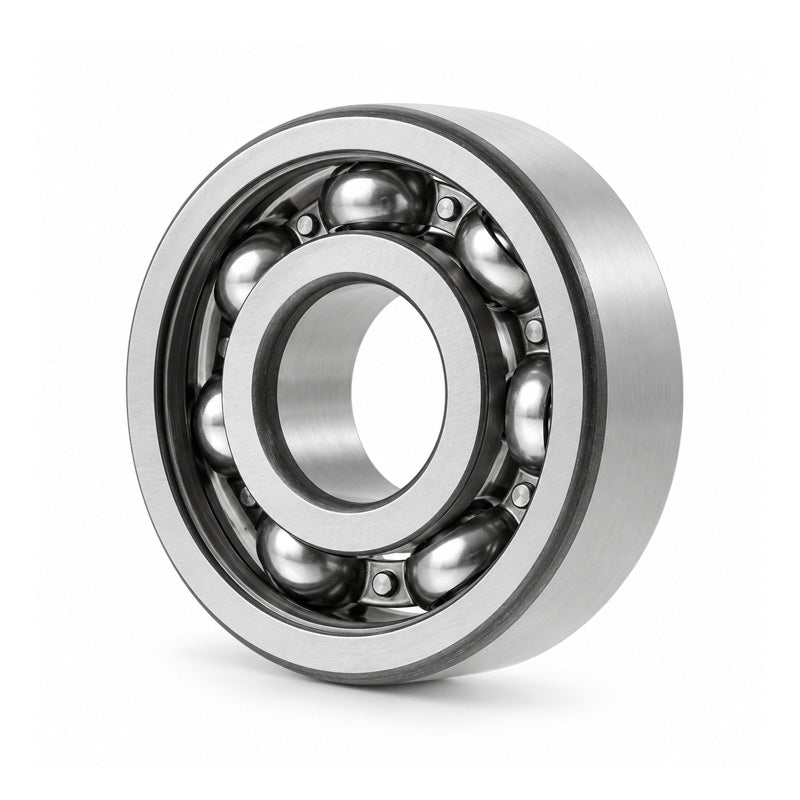

NACHI 6309C3 Open Deep Groove Ball Bearing 45x100x25mm
- Regular price
- €31,79 ex VAT
- Sale price
- €31,79
- Regular price
-
In stock
Quantity Price Breaks
5
€28,29
9
€26,70
19
€26,39
29
€26,07
49
€25,75
74
€25,43
99
€23,84
199
€23,52
249
€23,21
499
€22,89
999
€22,25
SKU:
6309/C3-NACHI
NACHI 6309C3 Open Deep Groove Ball Bearing 45x100x25mm
- Regular price
- €31,79 ex VAT
- Sale price
- €31,79
- Regular price
-
Description
|
NACHI Open Type Deep Groove Ball Bearings: These deep groove ball bearings can sustain radial, axial or composite loads and because of simple design, this bearing type can be produced to provide both high-running accuracy and high-speed operation. This type of bearing consists of inner and outer rings, balls and a cage. Benefits: High-running accuracy and high-speed operation. |
Technical
| Inside Diameter d | = | 45mm |
| Outside Diameter D | = | 100mm |
| Width B | = | 25mm |
| Min radius r | = | 1.5mm |
| Dynamic load | = | 53000 kN |
| Static load | = | 32000 kN |
| Max speed in oil | = | 8200 rpm |
| Max speed in grease | = | 7000 rpm |
| da min | = | 54mm |
| Da max | = | 91mm |
| ra max | = | 1.5mm |
| Weight | = | 0.833 kg |
