SKU: 6308-2RS/C3-CDX

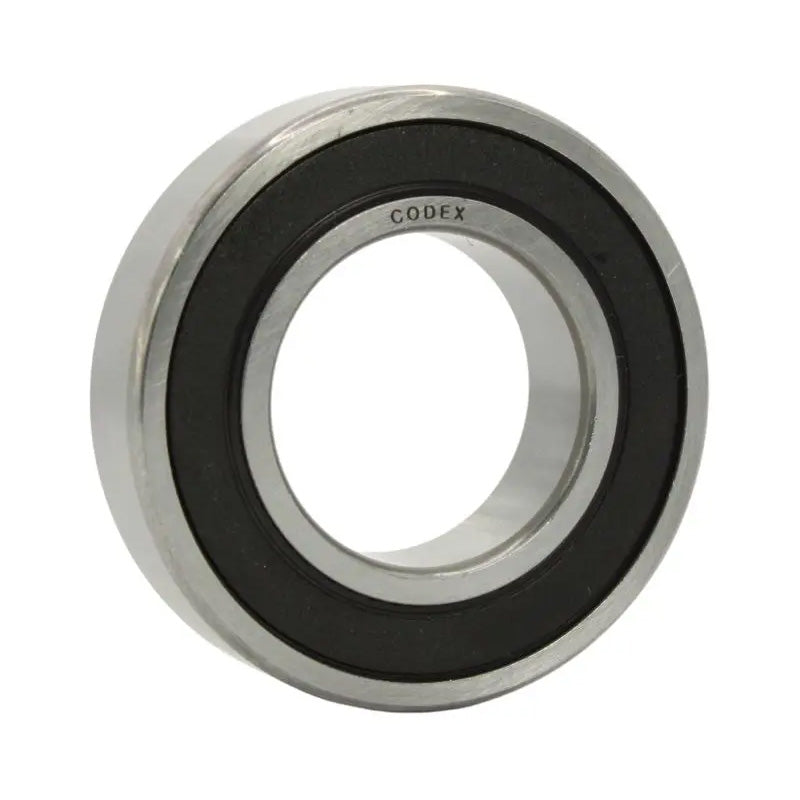

Codex 63082RSC3 Rubber Sealed Deep Groove Ball Bearing 40x90x23mm
- Regular price
- €22,24 ex VAT
- Sale price
- €22,24
- Regular price
-
In stock
Quantity Price Breaks
4
€19,79
10
€18,68
20
€18,46
30
€18,24
50
€18,01
75
€17,79
100
€16,68
200
€16,46
250
€16,24
500
€16,01
1000
€15,57
SKU:
6308-2RS/C3-CDX
Codex 63082RSC3 Rubber Sealed Deep Groove Ball Bearing 40x90x23mm
- Regular price
- €22,24 ex VAT
- Sale price
- €22,24
- Regular price
-
Description
|
Rubber Sealed Deep Groove Ball Bearings: One of the most commonly used bearings, these types are manufactured with rubber seals inserted into the outer raceway and in contact with the inner race providing protection against the ingress of moisture, dust and other foreign matter and serve to retain the pre-filled grease in the bearing |
Technical
| d | = | 40mm |
| D | = | 90mm |
| B | = | 23mm |
| Dynamic load C | = | 42.3 kN |
| Static load Co | = | 24 kN |
| Fatigue load limit Pu | = | 1.02 |
| Reference speed | = | 17000 rpm |
| Limiting speed | = | 5000 rpm |
| Weight | = | 0.63 kg |
| d1 | = | 56.1mm |
| D2 | = | 77.7mm |
| r1r2 | = | 1.5mm |
| da min | = | 49mm |
| Da max | = | 81mm |
| ra max | = | 1.5mm |
| Calc factor kr | = | 0.03 |
| Calc factor Cor f0 | = | 13 |
