SKU: 6306-ZZE-NACHI

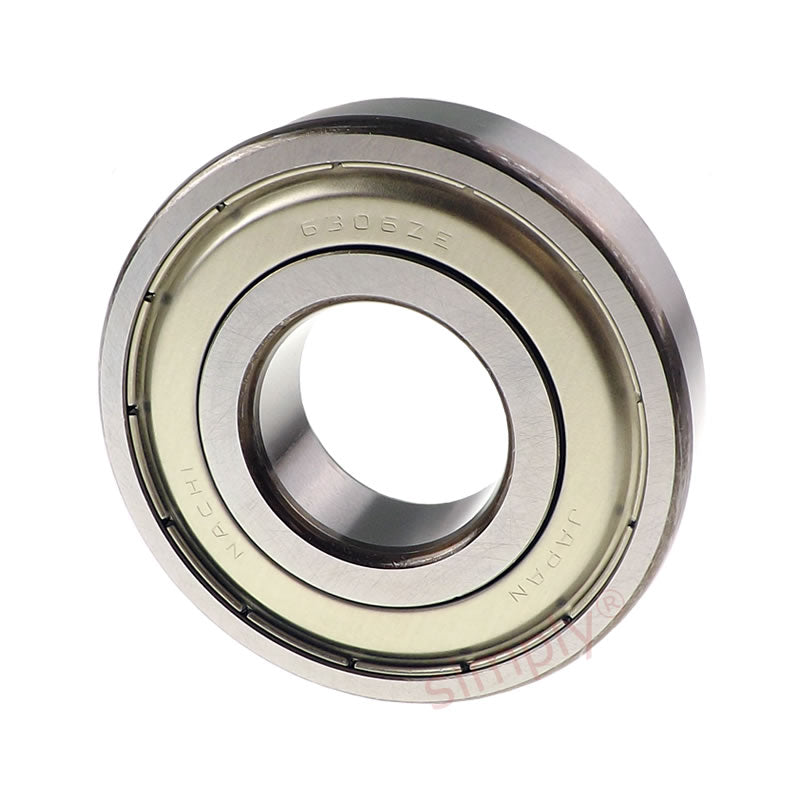

NACHI 6306ZZE Metal Shielded Deep Groove Ball Bearing 30x72x19mm
- Regular price
- €15,64 ex VAT
- Sale price
- €15,64
- Regular price
-
In stock
Quantity Price Breaks
5
€13,92
9
€13,14
19
€12,98
29
€12,82
49
€12,67
74
€12,51
99
€11,73
199
€11,57
249
€11,42
499
€11,26
999
€10,95
SKU:
6306-ZZE-NACHI
NACHI 6306ZZE Metal Shielded Deep Groove Ball Bearing 30x72x19mm
- Regular price
- €15,64 ex VAT
- Sale price
- €15,64
- Regular price
-
Description
|
NACHI Metal Shielded Deep Groove Ball Bearings: These deep groove ball bearings can sustain radial, axial or composite loads and because of simple design, this bearing type can be produced to provide both high-running accuracy and high-speed operation. This bearing has two steel shields to provide a labyrinth clearance. Benefits: High-running accuracy and high-speed operation. |

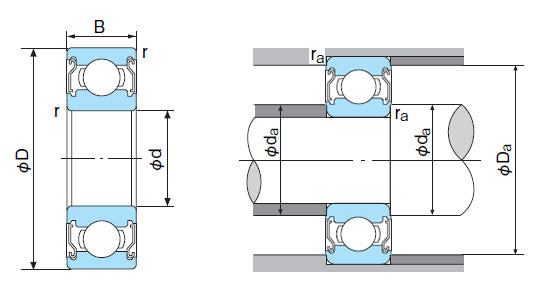

Technical
| Inside Diameter d | = | 30mm |
| Outside Diameter D | = | 72mm |
| Width B | = | 19mm |
| Min radius r | = | 1.1mm |
| Dynamic load | = | 26700 kN |
| Static load | = | 15000 kN |
| Max speed | = | 10000 rpm |
| da min | = | 37mm |
| Da max | = | 65mm |
| ra max | = | 1mm |
| Weight | = | 0.346 kg |
