SKU: 6304-HT-330

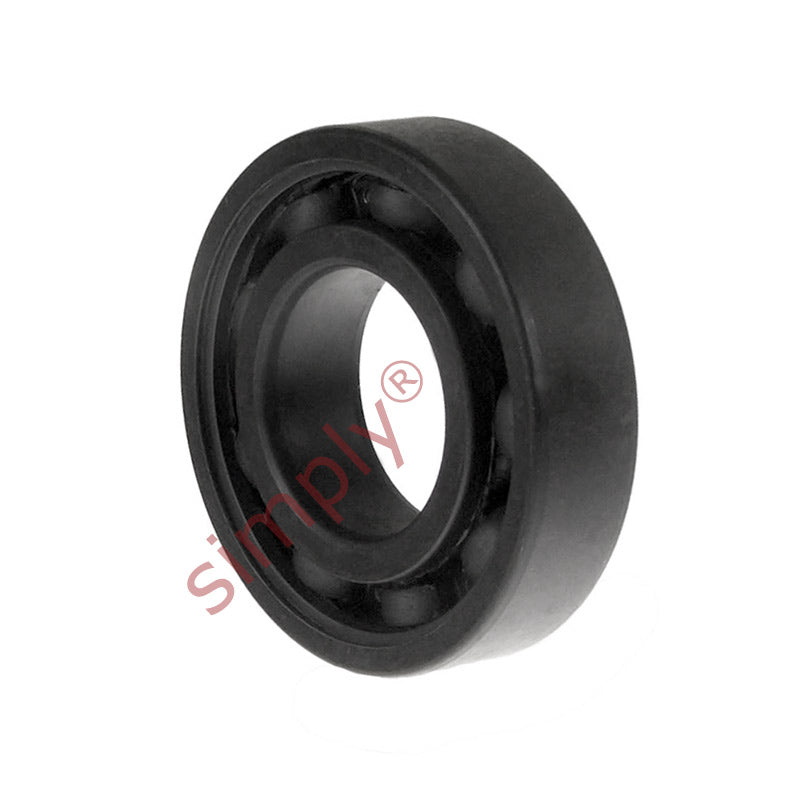

6304HT330 High Temp 330C Open Deep Groove Ball Bearing 20x52x15mm Max 160rpm
- Regular price
- €14,25 ex VAT
- Sale price
- €14,25
- Regular price
-
Not in stock
Quantity Price Breaks
3
€12,68
5
€11,97
10
€11,83
15
€11,69
20
€11,54
30
€11,40
40
€10,69
50
€10,55
60
€10,40
75
€10,26
100
€9,98
SKU:
6304-HT-330
6304HT330 High Temp 330C Open Deep Groove Ball Bearing 20x52x15mm Max 160rpm
- Regular price
- €14,25 ex VAT
- Sale price
- €14,25
- Regular price
-
Description
HT330 Series High Temperature Bearings: Manufactured with a steel cage to further enhance the bearings performance, supplied un-shielded are designed for high temperatures up to + 330 degrees Celsius and down to - 30 degrees Celsius. At temperatures over + 200 dry lubrication pertains. Designed for low speeds at temperature without maintenance. Internal clearance is increased to compensate expansions and all have a BLACK PHOSPHATE COATING
Benefits: High temperature resilience, low maintenance, can be re-lubricated
Technical
| Inside diameter d | = | 20mm |
| Outside diameter D | = | 52mm |
| Width W | = | 15mm |
| Static load max | = | 4.91 kN |
| Max operating temperature | = | 330 deg Celcius |
| Maximum speed | = | 160 rpm |
| Weight | = | 140 g |
