SKU: 6304-2RS-HT-150

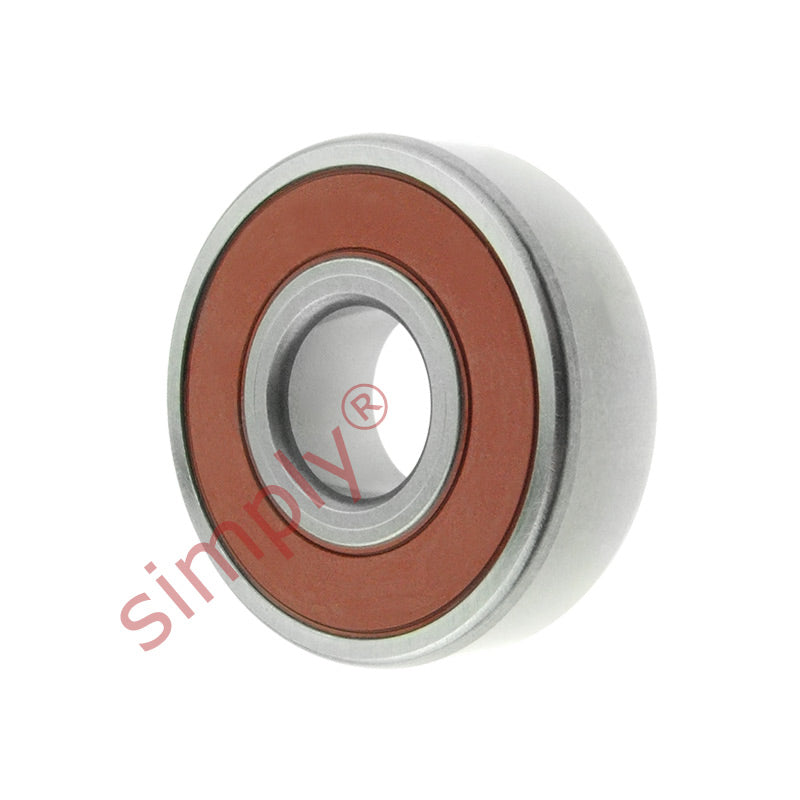

63042RSHT150 High Temp 150C Rubber Sealed Deep Groove Ball Bearing 20x52x15mm Max 7000rpm
- Regular price
- €17,09 ex VAT
- Sale price
- €17,09
- Regular price
-
Quantity Price Breaks
63042RSHT150 High Temp 150C Rubber Sealed Deep Groove Ball Bearing 20x52x15mm Max 7000rpm
- Regular price
- €17,09 ex VAT
- Sale price
- €17,09
- Regular price
-
Description
HT150 Series High-Temperature Range Deep Groove Ball Bearings: With an operating range from minus 30 degrees up to plus 150 degrees Celsius these bearings are ideally situated in arduous conditions where rapid temperature changes are expected, refrigeration and baking equipment being a good example. Of standard ball bearing construction with C4 clearance they are manufactured with rubber seals inserted into the outer raceway, these fit in close proximity to the inner race providing protection against light mechanical damage, some protection against the ingress of moisture, dust and other foreign matter and serve to retain the pre-filled NLGI scale 2-3 grease in the bearing.
Benefits: Provides light mechanical protection, limits moisture and dirt ingress, lubricated for life, wide operating temperature
Technical
| Inside diameter d | = | 20mm |
| Outside diameter D | = | 52mm |
| Width W | = | 15mm |
| Static load max | = | 8.6 kN |
| Max operating temperature | = | 150 deg Celcius |
| Maximum speed | = | 7000 rpm |
| Weight | = | 140 g |
